Firelite ECC-50/100
Firelite ECC-50/100
Out of stock; call for lead time

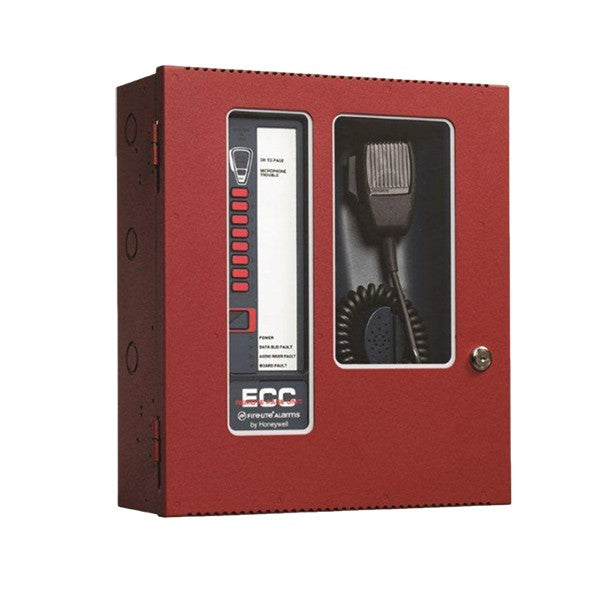

The Fire-Lite ECC-50/100 is a fire voice-evacuation and mass-notification control panel housed in a surface-mount steel cabinet, built around a 25 Vrms, 50-watt amplifier driving one supervised Style Y/Z speaker circuit. It stores up to 14 field-programmable digital messages of up to 60 seconds each, and pairs a 2.0 A synchronized 24 VDC NAC output with three Form C status relays and 500 mA of auxiliary power for building-wide notification.
Key Features
- Onboard USB/web programming utility - no external software required
- Expandable to 100 W and eight speaker circuits with optional ECC-50W and ECC-CE6 modules
- Supervised integral microphone and 8 command input circuits (two selectable for NAC reverse-polarity activation)
- NAC synchronization compatible with System Sensor, Wheelock, or Gentex notification devices
Technical Specifications
- Built-in Audio Power: 50 W at 25 Vrms (single speaker circuit)
- NAC Output: 24 VDC, 2.0 A, synchronized
- Auxiliary Power: 500 mA at 24 VDC
- Primary Power: 120 VAC, 60 Hz, 3.5 A (switch-mode)
- Battery Charging Capacity: 26 Ah; cabinet houses two 18 Ah batteries
