Firelite H365R

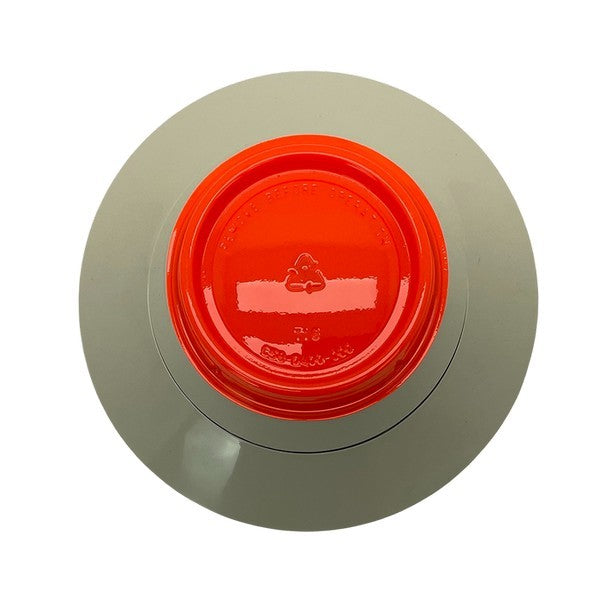

The Fire-Lite H365R is an intelligent, addressable rate-of-rise heat detector built for Fire-Lite's LiteSpeed-protocol addressable fire alarm control panels. It ships with its mounting base included and responds to a rapid rate of temperature rise of 15°F (8.3°C) per minute, with a low-profile housing, rotary decimal address switches for fast setup, and dual LEDs visible through 360 degrees.

Key Features

• Rate-of-rise thermal detection at 15°F (8.3°C) per minute, factory preset
• Compatible with Fire-Lite addressable control panels using the LiteSpeed protocol
• Rotary decimal address switches for fast, accurate device setup
• Dual LEDs for 360° visibility (blinking red in standby, steady red in alarm)
• Built-in magnet-activated test switch and remote test capability from the panel

Technical Specifications

• Operating Voltage: 15-32 VDC
• Standby Current: 200 µA @ 24 VDC average; Alarm Current: 4.5 mA @ 24 VDC
• Operating Temperature: -4°F to 100°F (-20°C to 38°C); Humidity: 10-93% RH non-condensing
• Dimensions: 2.0" high, base diameter 6.1" (B300-6 base) or 4.0" (B501 base); Weight: 3.4 oz

Certifications

• UL and ULC (S2517) Listed; FM Approved; CSFM Approved
• Low-profile housing designed to UL 268 7th Edition
