Firelite MMF-302-6-RC
Firelite MMF-302-6-RC
RECON-6-Input (Class B) Or 3-Input (Class A)
Regular price
$522.39
Sale price
$522.39
Regular price
Shipping calculated at checkout.
Out of stock; call for lead time

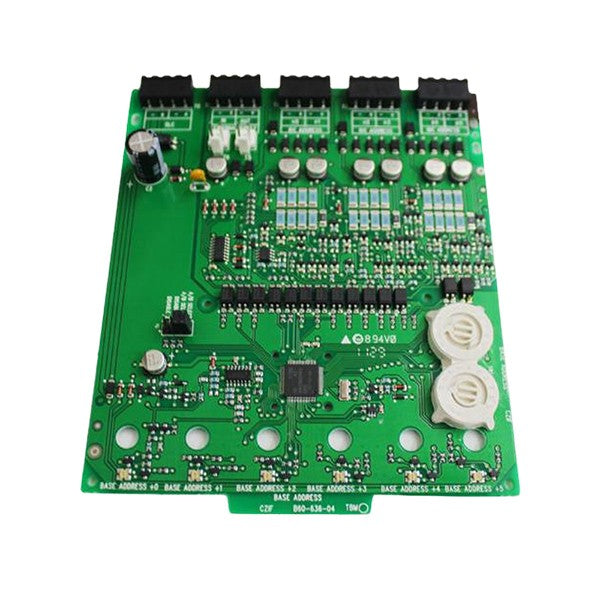

The Fire-Lite MMF-302-6 is a six-zone addressable interface module designed to connect zones of conventional two-wire smoke detectors to Fire-Lite addressable control panels. The module provides six addressable Class B or three addressable Class A initiating device circuits with removable terminal blocks for field wiring flexibility.
Key Features
- Six-zone interface for conventional 2-wire detectors
- Six Class B or three Class A IDC configuration options
- Addressable module for Fire-Lite panels
- Removable terminal blocks (12-18 AWG)
- Status indicators for each detection point
- LiteSpeed or CLIP operation modes
- Optional address disabling for unused channels
Technical Specifications
- Zone Count: Six zones (Class B) or three zones (Class A)
- External Supply: 18-28 VDC power-limited
- Ripple Voltage: 0.1 Vrms maximum
- Current: 90 mA maximum per address in alarm; 540 mA total
- Maximum Wiring Resistance: 25 ohms
- Terminal Block: Removable 12-18 AWG
- Operation Modes: LiteSpeed or CLIP compatible
Certifications
- UL Listed six-zone interface
- Fire-Lite addressable system compatible
- NFPA 72 compliant detector interface
