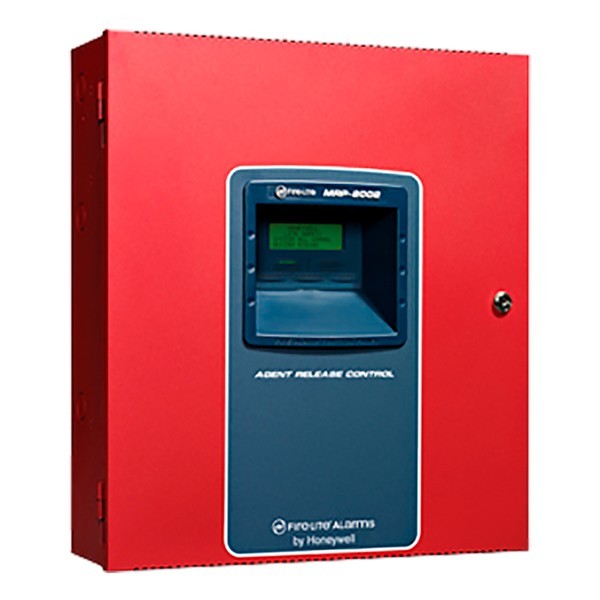

Firelite MRP-2002

The Fire-Lite MRP-2002 is a six-zone releasing fire alarm control panel built for single- and dual-hazard clean-agent suppression systems in commercial and institutional buildings. It supervises AC voltage, charger, and battery condition continuously, and is compatible with System Sensor i3 series conventional smoke detectors that report both maintenance and low-temperature supervisory signals back to the panel.

Key Features

• Dual-hazard operation with cross-zone/double-interlock capability
• Adjustable pre-discharge, discharge, and waterflow delay timing
• ANN-BUS connector supports up to 8 remote annunciators (ANN-80, ANN-I/O, ANN-RLY, ANN-LED, etc.)
• Built-in web-based programmer with a 256-event history log and real-time clock

Technical Specifications

• Primary Power: 120 VAC, 60 Hz, 3.66 A (MRP-2002); 240 VAC, 50 Hz, 2.085 A (MRP-2002E)
• Initiating Device Circuits: Six Style B (Class B) zones, 20 VDC nominal, 15 mA min alarm current, 100-ohm max loop resistance
• Output/Releasing Circuits: Four Style Y (Class B) or Style Z (Class A) circuits, 7.0 A max total signaling current
• Battery Charging: 26 Ah max capacity, two batteries housed in the cabinet

Certifications

• UL 864 Listed; FM Approved; designed to NFPA 12/12A agent-releasing standards and IBC seismic requirements
