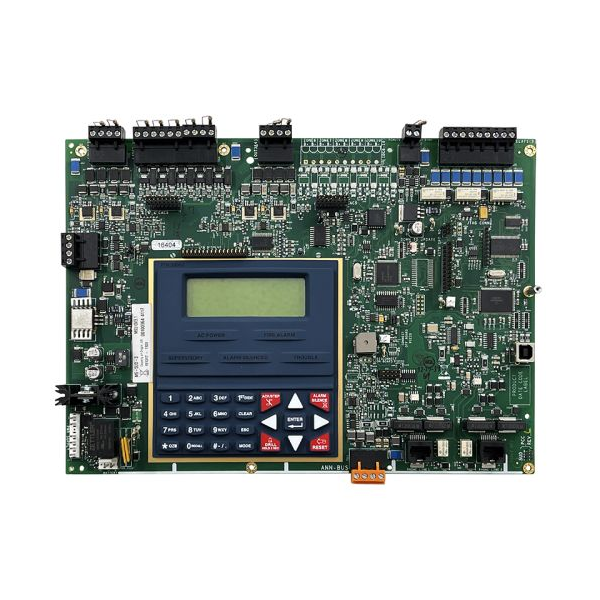

Firelite MS-5UD-3RB-RC
Firelite MS-5UD-3RB-RC
Only 5 left!
The Fire-Lite MS-5UD-3 is a five-zone conventional fire alarm control panel with a built-in digital alarm communicator transmitter (DACT), designed to provide reliable fire signaling protection for small to medium-sized commercial, industrial, and institutional buildings. It is fully programmable from its built-in keypad and 80-character LCD display without requiring an external programmer, and it accepts conventional two- and four-wire smoke detectors, pull stations, waterflow switches, and other normally-open contact initiating devices.
Key Features
- Five Class B conventional initiating zones and four Class B notification appliance circuits
- Built-in DACT for central station reporting
- Fully programmable via onboard keypad and 80-character LCD display
- Expandable with optional remote annunciator, relay module, LED driver module, transmitter module, and printer
Technical Specifications
- 120 VAC, 50/60 Hz, 1.0 A input; 24 VDC system operation with 3.0 A total system current
- Form-C relays for Alarm, Trouble, and Supervisory, rated 2.0 A @ 30 VDC or 0.5 A @ 30 VAC (resistive)
- Compatible with System Sensor i3 series detectors and standard conventional initiating devices
Certifications
- UL-listed conventional fire alarm control panel
