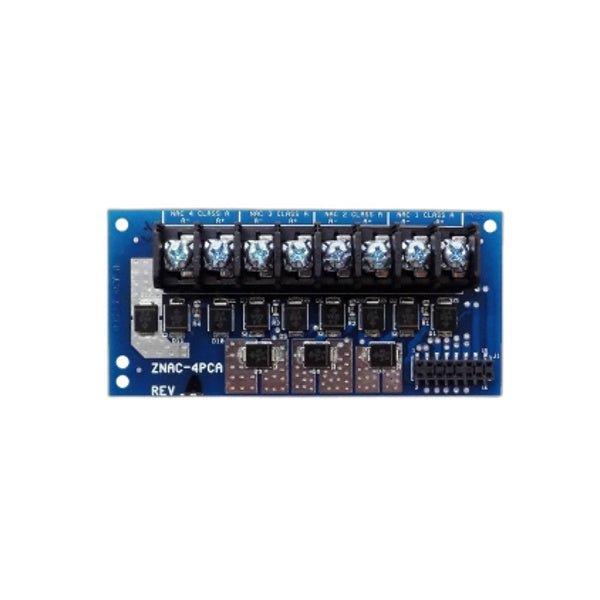

Firelite ZNAC-4

The Fire-Lite ZNAC-4 is a Class A conversion module that enables Style Z (Class A) notification appliance circuit (NAC) support on Fire-Lite FCPS-24 power supplies. This module provides power-limiting technology with fully regulated and filtered output suitable for powering four-wire detectors, annunciators, and other fire alarm system peripherals.

Key Features

• Converts to Class A (Style Z) notification circuit operation
• Mounts to J3 connectors on FCPS-24 circuit board
• Fully regulated and filtered power output
• Power-limiting technology meeting UL requirements
• Supports four-wire smoke detectors and annunciators
• Compatible with FCPS-24FS6 and FCPS-24FS8 power supplies

Technical Specifications

• Product Code: ZNAC-4
• Type: Class A NAC Option Module
• Conversion Style: Style Z (Class A) NAC support
• Output Power: 8A full load (3A maximum per circuit in expander mode)
• Continuous Output: 6A in stand-alone mode
• Compatible Power Supplies: FCPS-24FS6, FCPS-24FS8
• Installation: J3 connector on upper right of FCPS-24 circuit board
• NAC Support: Two Class B or Class A circuits (circuits 1 and 3)

Certifications

• UL Listed NAC converter module
• UL Power-Limiting technology compliant
• Fire-Lite approved system component
