Gamewell FCI | AMM-2RIF

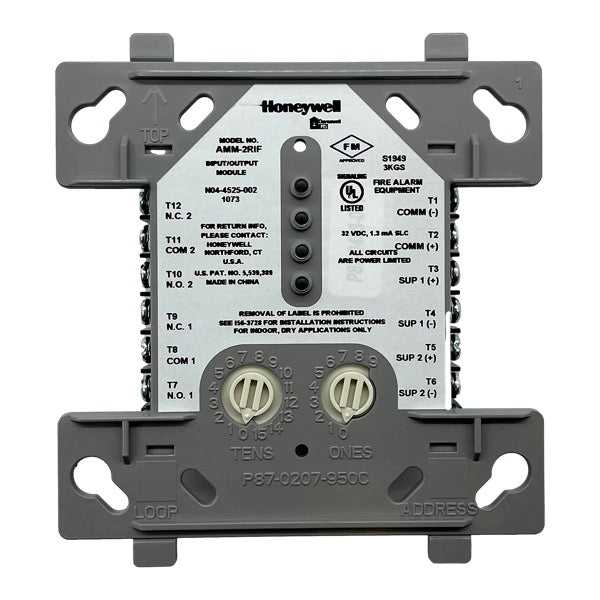

Gamewell-FCI AMM-2RIF Addressable Dual Input/Output Module

The Gamewell-FCI AMM-2RIF is an intelligent, addressable module that combines two monitor inputs and two relay outputs into a single device. Designed for seamless integration with Gamewell-FCI fire alarm control panels, it provides efficient control and monitoring of various fire protection and building management systems.

Key Features

• Dual Monitor Inputs: Supports two Class B supervised input circuits for monitoring devices such as pull stations and water flow switches.

• Dual Relay Outputs: Includes two Form C relay contacts for controlling external devices like fans, dampers, and doors.

• Addressable Communication: Utilizes Velociti® protocol for precise identification and communication within the fire alarm system.

• Bi-Color LED Indicators: Features dedicated LEDs for each input and output, providing clear visual status indications for normal, alarm, and trouble conditions.

• Rotary Address Switches: Equipped with visual rotary, decimal switch addressing (01 to 159), simplifying device address assignment during installation.

• Compact Design: Mounts directly to a standard 4-inch square electrical box or into the DNR(W) duct housing, conserving space and simplifying installation.

This module is ideal for applications requiring both input monitoring and output control in the same location, such as high-rise buildings and large commercial complexes. It is UL Listed and complies with industry standards for reliable performance.
