Gamewell FCI AOM-TELF
Gamewell FCI AOM-TELF
Only 2 left!

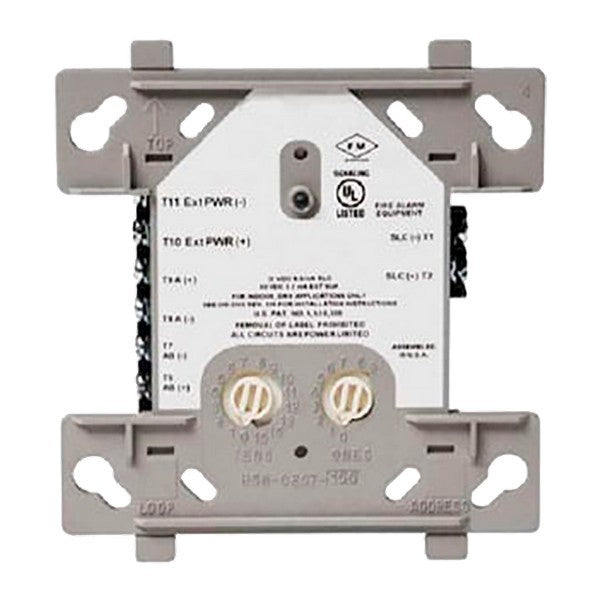

The Gamewell-FCI AOM-TELF is an addressable telephone monitor module from the Velociti Series, installed in the signaling line circuit of a Gamewell-FCI emergency voice evacuation system to control communication between the command center and the building's fire warden telephone jacks and handsets. It mounts in a standard 4-inch square junction box with a 2-1/8-inch depth, and reports status back to the panel as NORMAL, TROUBLE, or TELEPHONE-in-use via a panel-controlled LED indicator.
Key Features
- Monitors and supervises wiring to fire warden telephone jacks and handsets
- Panel-controlled LED indicator for local status
- Fits a standard 4-inch square junction box, 2-1/8-inch deep
- Supports Class A (fault-tolerant) or Class B two-wire circuit configuration
Technical Specifications
- Status Reporting: NORMAL, TROUBLE, TELEPHONE
- Current Draw: 24mA typical, 75mA maximum
- Operating Range: 32-120°F (0-49°C), 10-93% relative humidity, non-condensing
- Wiring: Class A or Class B supervised circuit
Certifications
- UL Listed addressable telephone monitor module
