Gamewell FCI ASM-16-RC
Gamewell FCI ASM-16-RC
RECON-Switch Module Programmable
Regular price
$409.59
Sale price
$409.59
Regular price
Shipping calculated at checkout.
Out of stock; call for lead time

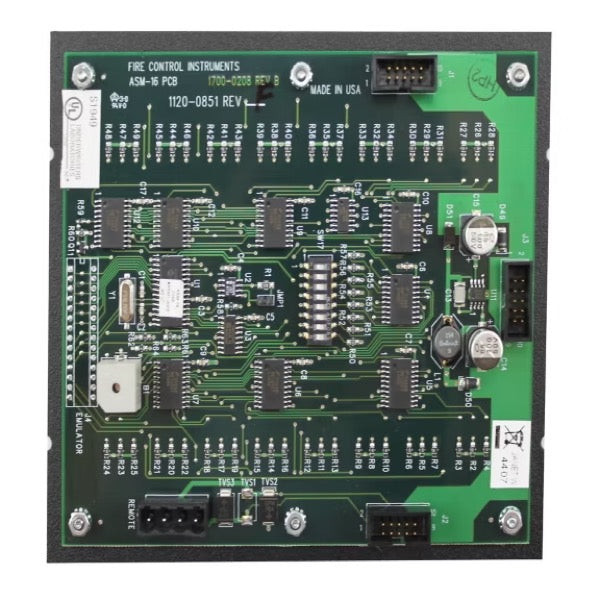

The Gamewell-FCI ASM-16 (part 1100-0455) is a programmable addressable switch module used with E3 Series fire, mass notification, and voice evacuation systems. It gives operators a physical interface -- 16 switches and 48 status LEDs -- for controlling audio evacuation zones, firefighter intercom circuits, and other building control functions from the panel or a remote enclosure.
Key Features
- 16 configurable switches with 48 fully programmable status LEDs (red, yellow, green per switch)
- All switch functions software-programmable from the E3 system
- Can be remotely located via RS-485 serial interface
- Mounts in Gamewell-FCI E3 enclosures alongside other E3 slot-based modules
Technical Specifications
- Part Number: 1100-0455
- Operating Voltage: 24 VDC nominal, from a PM-9/PM-9G power supply
- Operating Current: 0.011 A
- Capacity: Each INI-VGC or ILI-MB-E3/ILI95-MB-E3 supports up to 16 ASM-16 modules (256 switches)
Certifications
- UL Listed for use in E3 Series fire alarm and mass notification systems
