BSM-7100-2 - Gamewell-FCI 7100 Series notification circuit module - Protegis Fire & Safety

Gamewell FCI BSM-7100-2-RC

Gamewell FCI BSM-7100-2-RC

RECON-Mother Board (2) Intelligent Dataloops

Vendor: Gamewell FCI

Type: Fire Alarm > Boards

SKU: GW-F1P1-5005-RC

$1,592.61
$1,592.61
Shipping calculated at checkout.

Core Charge $825

Eligible for credit if core is returned within 30 days of order A core charge is a fee you pay when buying a part, that will be returned to you when you send the old part you’re replacing back. In other words, it’s a monetary incentive to get your old part so that we can recondition and continue to offer this part to future customers.

Only 1 left!

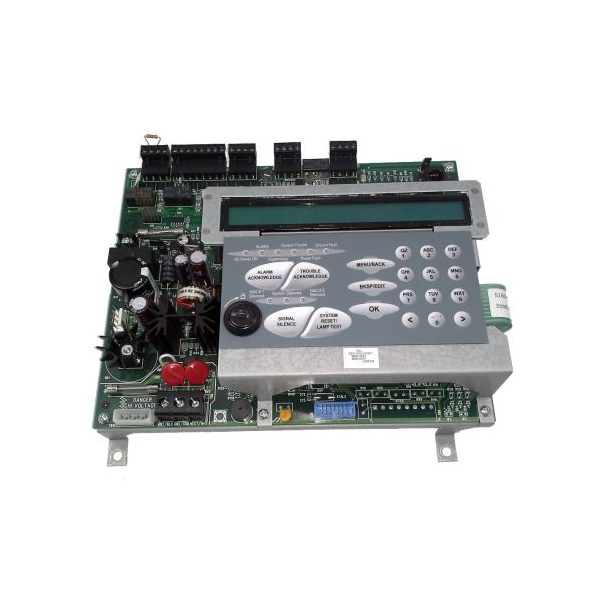

The Gamewell-FCI BSM-7100-2 is a Basic System Module for the 7100 Series analog addressable fire alarm control panel, providing the panel's two on-board Class B notification appliance circuits and battery charging electronics. It mounts inside the 7100 Series cabinet and works alongside the panel's main CPU card to drive horns, strobes, and other notification appliances while keeping the standby battery charged and supervised.

Key Features

  • Two on-board Class B notification appliance circuits (NAC 1 and NAC 2)
  • Integrated battery charger for the system's standby batteries
  • Designed as a direct-fit module for the Gamewell-FCI 7100 Series control panel cabinet

Technical Specifications

  • Battery connection: 24 VDC nominal
  • Maximum battery charge current: 0.6 A
  • Notification circuit rating: 1.5 A maximum alarm load per circuit
  • Compatibility: Gamewell-FCI 7100 Series fire alarm control panel

Certifications

  • UL 864, 9th Edition listed as part of the 7100 Series control panel
