Gamewell FCI GF506R

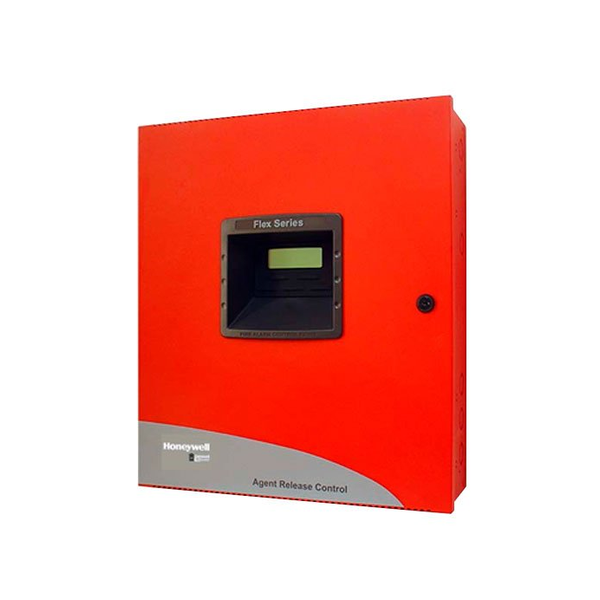

The Gamewell-FCI Flex GF506R is a six-zone fire alarm control panel built for single and dual-hazard clean-agent releasing applications in commercial, industrial, and institutional buildings. It combines conventional fire detection and signaling with four programmable notification/releasing circuits and three Form C relays, and supervises wiring, AC voltage, and battery condition continuously.

Key Features

• Six programmable alarm zones supporting two-wire and four-wire smoke detectors, pull stations, waterflow, and tamper switches
• Four programmable NAC/releasing circuits plus three programmable Form C relays
• Built-in programmer with 256-event history log and custom English point labels
• 80-character backlit LCD display, real-time clock with automatic daylight savings adjustment

Technical Specifications

• Power Input: 120VAC, 50/60Hz, 2.3A (minimum 14 AWG wire)
• Battery: Sealed lead-acid, up to 26 Amp-Hour capacity
• NAC/Releasing Circuits: 24VDC nominal, 7.0A total (3.0A max per circuit)
• Special Power Output: 24VDC, 500mA (resettable or non-resettable)
• Wiring: Class A and Class B (Style D) supported

Certifications

• UL 864 (9th Edition) Listed
• IBC Seismic Certified
• Designed to NFPA 12 and 12A releasing standards
