Gamewell FCI HPF-PS10

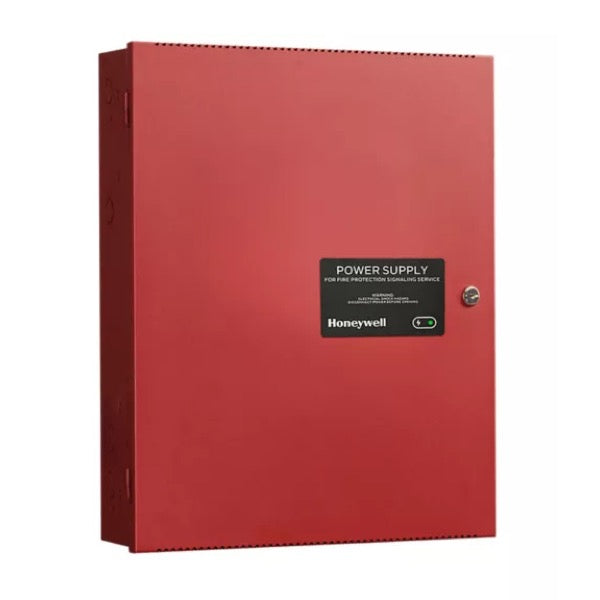

Gamewell-FCI HPF-PS10 Remote Power Supply

The Gamewell-FCI HPF-PS10 is a 10-amp, 24-volt remote power supply with an integrated battery charger, designed to extend the power capabilities of fire alarm control panels (FACPs) or function as a standalone power source. It provides 24 VDC power for Notification Appliance Circuits (NACs) and auxiliary devices, ensuring reliable operation in various fire alarm and life safety applications.

Key Features:

• High Output Capacity: Delivers a full 10-amp output, supporting multiple devices and extensive notification appliance circuits.

• Configurable Output Circuits: Offers up to seven independently configurable, power-limited output circuits that can be set for:

• Class B and/or Class A NACs

• Class B and/or Class A resettable or non-resettable 24V auxiliary power

• Door holder power

• Class A Conversion: Easily converts from Class B to Class A wiring using the optional ZNAC-PS converter card without losing any outputs.

• Synchronization Compatibility: Supports UL-Listed NAC synchronization protocols for System Sensor®, Wheelock®, Gentex®, and AMSECO® appliances, ensuring cohesive operation of notification devices.

• Flexible Installation: Can be connected to any 12 or 24-volt FACP or used as a standalone power supply, providing versatility in system design.

• Integral Battery Charger: Includes a built-in battery charger capable of charging up to 33 AH batteries (in a separate cabinet), with the main cabinet accommodating two 7 AH or 18 AH batteries.

Specifications:

• Primary (AC) Power: 120 VAC, 50/60 Hz, 6.2 A maximum

• Output Circuits: 24 VDC filtered, regulated; 10.0 A maximum total continuous current for all outputs

• Secondary Power (Battery) Charging Circuit:

• Float-charge voltage: 27.6 VDC

• Maximum charge current: 1.5 A

• Maximum battery capacity: 18 AH (inside cabinet); 33 AH (external cabinet)

• Physical Dimensions: 20.0”H x 14.5”W x 3.5”D (50.8 cm H x 36.83 cm W x 8.9 cm D)

• Weight: Approximately 24 lbs (10.9 kg) with two 7 AH batteries; 39 lbs (17.7 kg) with two 18 AH batteries

Compatibility:

The HPF-PS10 is compatible with any UL 864 listed FACP that utilizes an industry-standard reverse-polarity notification circuit. It is also suitable for powering four-wire smoke detectors, annunciators, and other system peripherals requiring regulated power.
