Gamewell FCI LCD-E3
Gamewell FCI LCD-E3
Out of stock; call for lead time

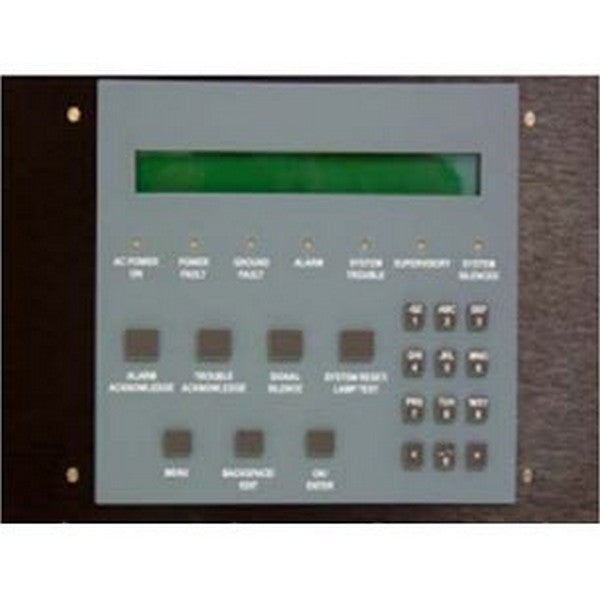

The Gamewell-FCI LCD-E3 is the LCD keypad display and annunciator for the E3 Series Expandable Emergency Evacuation System, showing an 80-character system event display alongside indicator LEDs and control switches. It's powered by 24VDC FWR from the panel's PM-9 power supply and communicates over a local RS-485 serial interface, which allows up to six LCD-E3 displays to be located directly on the main command center or remotely elsewhere in the building.
Key Features
- 80-character backlit LCD event display with low power consumption
- Switch controls for alarm acknowledge, system reset/lamp test, signal silence, and trouble acknowledge
- LED indicators for AC power, alarm, supervisory, system trouble, power fault, and system silence
- Up to six units can be located locally or remotely via RS-485
Technical Specifications
- Operating Voltage: 24VDC FWR (from PM-9 power supply)
- Interface: Local RS-485 serial
- Compatible Panels: Gamewell-FCI E3 Series fire alarm control panels
Certifications
- UL Listed: S1869; UL 864, 10th Edition
- FM Approved: 3025415
