Gamewell FCI LCD-SLP

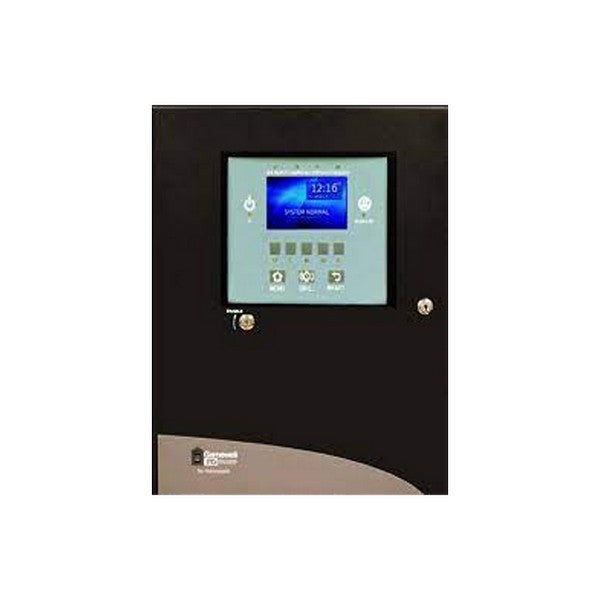

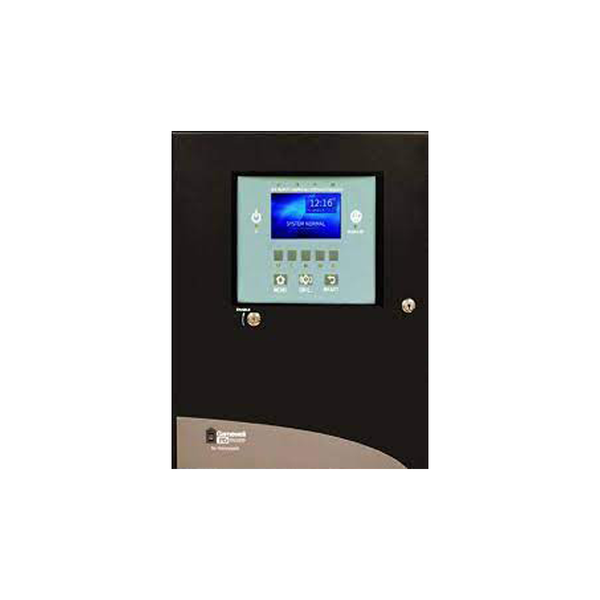

The Gamewell-FCI LCD-SLP is a touchscreen annunciator display used with Gamewell-FCI S3 Series and E3 Series fire alarm control panels. It gives operators an intuitive, color touchscreen interface for viewing system status and event details and for performing routine service functions. The panel's adaptable design allows it to be mounted in a range of S3, E3, or retrofit cabinet installations.

Key Features

• 4.3-inch diagonal color touchscreen display
• Shows system status, event details, and service modes
• Five fully-programmable front-panel switch/LED combinations for device bypass, lamp test, and enable/disable of groups or devices
• Dedicated physical Menu, System Reset, and Drift Walk Test controls

Technical Specifications

• 480 x 272 pixel display resolution
• Communicates with the host panel over an RS-485 serial interface
• Compatible with S3 Series, E3 Series, and select retrofit cabinet mounting configurations

Certifications

• Designed for use as an accessory within UL-listed Gamewell-FCI S3/E3 Series fire alarm systems
