Gamewell FCI MCS-COP3

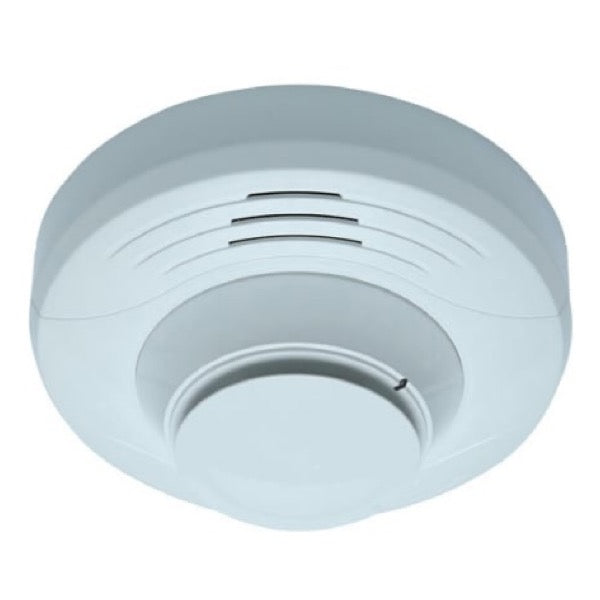

Gamewell-FCI MCS-COP3 Addressable Multi-Criteria Photoelectric/CO Detector

The Gamewell-FCI MCS-COP3 is an intelligent, addressable detector that combines photoelectric smoke and carbon monoxide (CO) sensing technologies within a single device. Designed to meet both UL 268 7th Edition and UL 2075 standards, it provides reliable fire and CO detection for commercial and residential applications.

Key Features

• Dual Sensing Technology: Integrates photoelectric smoke detection and electrochemical CO sensing for comprehensive protection.

• Addressable Communication: Utilizes Velociti® protocol for precise identification and monitoring within the fire alarm system.

• Rotary Address Switches: Features visual rotary, decimal switch addressing (01 to 159), simplifying the assignment of device addresses during installation.

• RealTest® CO Testing Capability: Allows for functional testing of the CO sensor using a test magnet or canned CO agent, ensuring proper operation.

• 10-Year CO Cell: Equipped with a long-life CO sensor that includes end-of-life warning and fault indicators.

• Optional Sounder Bases: Compatible with B200S series intelligent sounder bases, providing distinct audible signals for fire (Temp 3) and CO (Temp 4) alarms.

This detector is ideal for installations such as hotels, schools, and high-rise residential buildings that require both smoke and CO detection. Its modern design and expanded color options support contemporary aesthetic demands, and it occupies only one address on the Signaling Line Circuit (SLC) loop, optimizing system resources.
