Gamewell FCI MMI-6SF
Gamewell FCI MMI-6SF
Out of stock; call for lead time

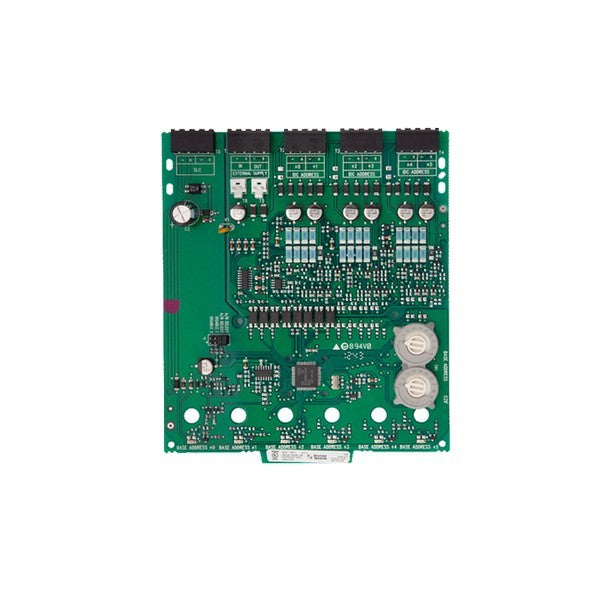

The Gamewell-FCI MMI-6SF is a multi-mod six-zone interface module part of the Velociti Series, providing supervised initiating device circuits at substantially increased communication speeds. This module interfaces conventional 2-wire smoke detectors and normally-open contact devices to the Gamewell-FCI analog addressable fire alarm system, supporting both Style B (Class B) and Style D (Class A) wiring configurations.
Key Features
- Six Style B (Class B) or three Style D (Class A) supervised IDC capability
- Velociti Series communication protocol for 5x faster response than earlier designs
- Compatible with conventional 2-wire smoke detectors and normally-open contact devices
- Connect to signaling line circuits (SLC) of Gamewell-FCI analog addressable panels
- Multi-zone interface for flexible detector configurations
Technical Specifications
- Operating Voltage: 5-32 VDC
- Standby Current: 2 mA
- Alarm Current: 40 mA (all six LEDs lit)
- Maximum IDC Wire Resistance: 25 Ohms
- Temperature Range: 32-120°F (0-49°C)
- Humidity: 10-85% non-condensing
- Dimensions: 6.8" H x 5.8" W x 1.25" D
- External DC Supply: 18-28 Volts power-limited, 90 mA per circuit
Certifications
- UL Listed interface module
- Velociti Series compatible
- NFPA 72 compliant initiating circuits
