Gamewell FCI MMO-6SF

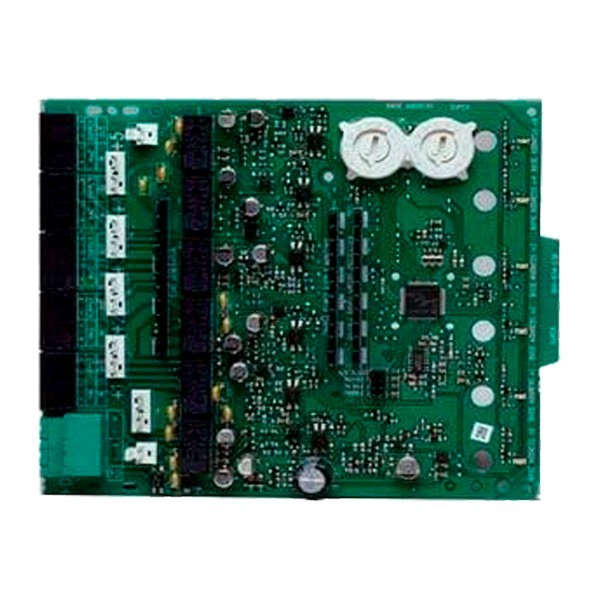

Gamewell-FCI MMO-6SF Multi-Mod Six Signal Output Module

The Gamewell-FCI MMO-6SF is an intelligent, addressable module designed to provide six supervised output circuits for controlling external devices in fire alarm systems. Each output circuit occupies its own address on the system’s Signaling Line Circuit (SLC), allowing for precise control and monitoring. This module is ideal for applications requiring multiple outputs, such as activating notification appliances, door holders, or other auxiliary devices.

Key Features

• Six Supervised Output Circuits: Provides six Style Y (Class B) or three Style Z (Class A) individually addressable and programmable output circuits.

• Flexible Configuration: Features jumper settings that allow up to three output circuit addresses to be disabled, freeing them for other uses.

• External Power Monitoring: Includes monitoring of external power supplies to ensure reliable operation of connected devices.

• Removable Terminal Blocks: Facilitates easy installation and maintenance with terminal blocks accommodating 12 to 18 AWG wire.

• Short Circuit Protection: Provides protection for external power supplies against short circuits, enhancing system safety.

• Versatile Input Sources: Supports AC, DC, or audio input sources, offering flexibility in system design.

The MMO-6SF module is compatible with Gamewell-FCI analog addressable fire alarm control panels and is UL Listed, FM Approved, and CSFM Certified, ensuring compliance with industry standards.
