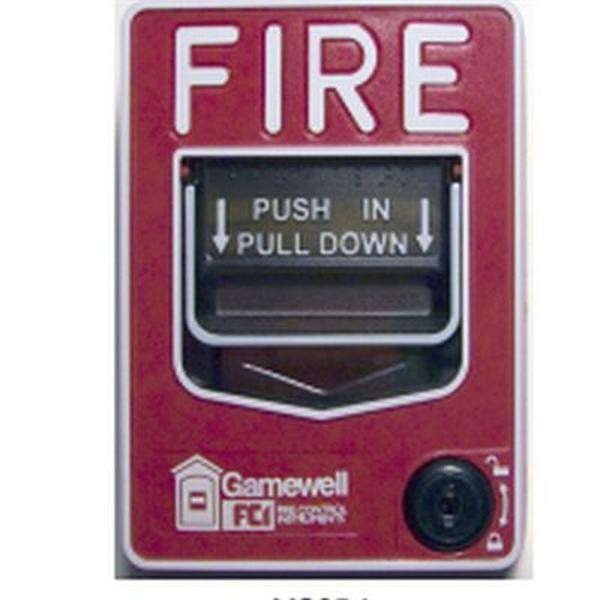

Gamewell FCI MS95-DL

The Gamewell FCI MS95-DL is an addressable dual-action manual pull station designed for fire alarm systems using the XP95 protocol and Gamewell-FCI 600 Series Fire Alarm Control Panels. This pull station requires two distinct actions—pull down and twist—to prevent accidental activation, providing clear visual and auditory feedback when successfully operated in emergency situations.

Key Features

• Addressable XP95 interface with Loop Isolator capability—up to 126 stations per XP95 loop
• Dual-action design with key reset mechanism prevents false alarms from accidental contact
• Bicolor LED status indicator flashes during normal operation and latches steady red when activated
• ADA compliant with 5 lb. maximum pull force and clear "Activated" label visible when station is operated
• Semi-flush or surface-mount installation options with flexible backbox compatibility

Technical Specifications

• Addressing: Single address per module on XP95 addressable loop
• Contact Type: Form C (NO/NC) contacts rated for 10 A @ 125/250 VAC and 2.5 A @ 24 VDC
• Operating Voltage: 13–32 VDC nominal for XP95 loop power
• Reset: T-key reset with latch mechanism—maintenance personnel can open without alarm condition
• Dimensions: Semi-flush mount to single-gang, double-gang, or 4-inch square electrical outlet boxes
• LED Status: Tri-color bicolor LED visible through handle with flashing (normal) and steady red (alarm)

Certifications

• UL 38 Listed for manually actuated signaling boxes
• ADA compliant manual pull station
• Compatible with Gamewell-FCI 600 Series Fire Alarm Control Panels
