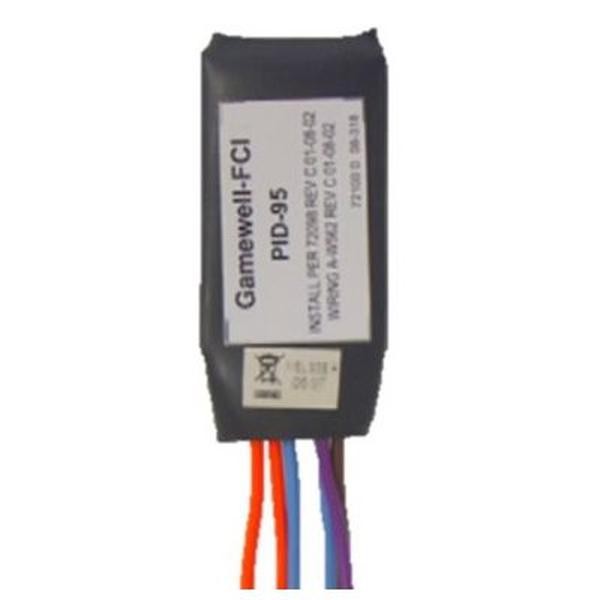

Gamewell FCI PID-95-RC

The Gamewell FCI PID-95 is an addressable point identification device for 600 Series and ILI95-E3 Series analog addressable fire alarm control panels. It monitors and identifies contact-type initiating devices such as water flow switches and manual stations by reporting device activation through a dedicated address on the two-wire supervised SLC (Signaling Line Circuit).

Key Features

• Addressable point identification for contact-type devices (water flow, manual stations, etc.)
• DIP switch programming for easy address and priority interrupt configuration
• LED for local alarm annunciation and status indication
• Mounts in electrical backboxes (4x4.688 inch double-gang or 4-inch square)
• Plate-mounted design for surface or flush mounting options

Technical Specifications

• Standby Current: 0.0005A to 0.0008A
• Alarm Current: 0.0015A
• Compatible Panels: Gamewell 600 Series and ILI95-E3 Series analog addressable systems
• Circuit Type: Monitors Style B circuits via two-wire supervised SLC
• Mounting: 4x4.688 inch double-gang backbox or 4-inch square backbox

Certifications

• UL Listed addressable point identification device
• NFPA 72 compliant
