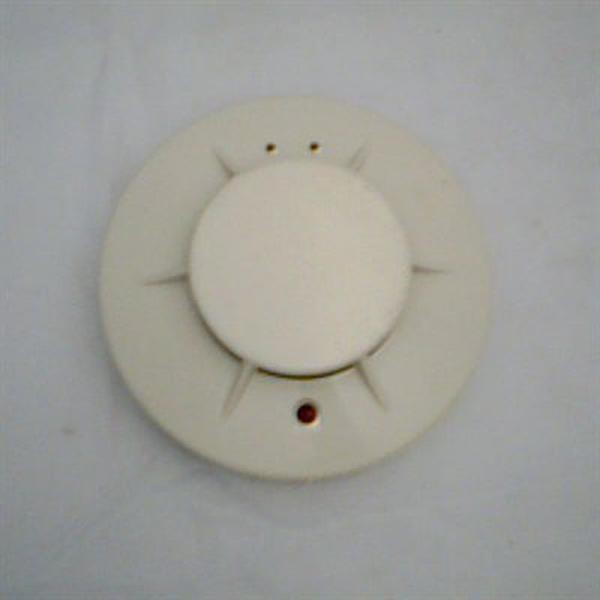

Gamewell FCI PSD-7155-RC

The Gamewell FCI PSD-7155 is a conventional photoelectric smoke detector head engineered for early detection of smoldering fires in commercial and industrial fire alarm systems. This single-chamber optical smoke sensor uses light-scattering detection technology to respond to visible smoke particles, making it effective for a wide range of fire types. Compatible with standard Gamewell detector bases, the PSD-7155 offers reliable performance in clean environments where photoelectric technology provides superior sensitivity to slow-burning fires.

Key Features

• Photoelectric optical chamber for visible smoke detection
• Standard 4-inch base compatibility with Gamewell systems
• Fixed sensitivity of 1.5% to 4% obscuration per NFPA 72
• Low-profile compact design for modern ceiling installations
• Field-replaceable detector head for convenient maintenance

Technical Specifications

• Detection method: Photoelectric (light-scattering optical chamber)
• Sensitivity range: 1.5% to 4% obscuration
• Operating voltage: 12-32 VDC from control panel
• Current draw: 50 µA in standby, 10 mA upon alarm
• Base compatibility: Gamewell conventional and addressable bases
• Temperature range: 32°F to 100°F (0°C to 38°C)

Certifications

• UL 268 Listed photoelectric smoke detector
• FM Approved for all-risk fire detection
• NFPA 72 sensitivity classification
