Gentex AVSM-R
Gentex AVSM-R
Only 6 left!

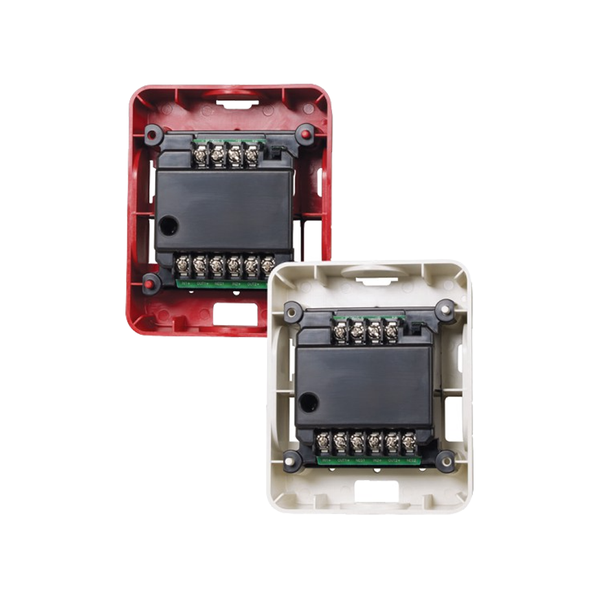

The Gentex AVSM-R is a red synchronization control module that lets a single pair of field wires drive synchronized Gentex strobes and horns from one fire alarm circuit. It takes separate signal inputs from the panel's strobe and horn circuits and combines them into one supervised output, flashing all connected strobes at the code-required 1 Hz rate and sounding horns in the Temporal 3 pattern, while still allowing the panel to silence the audible signal without interrupting the strobe flash.
Key Features
- Single-pair wiring for synchronized strobe and horn circuits
- Independent horn silence while strobes continue flashing
- Can be slaved to additional AVSM modules to synchronize unlimited notification zones
- Red faceplate (designated by the "-R" suffix)
Technical Specifications
- Inputs/Outputs: Two signal inputs (strobe, horn), one supervised field output
- Power: 12 VDC or 24 VDC
- Current Rating: 3.0A continuous, 5.0A surge/inrush
- Compatibility: Gentex Commander 2, 3, and 4 series notification appliances
- Mounting: 4" square x 2-1/8" deep electrical backbox
