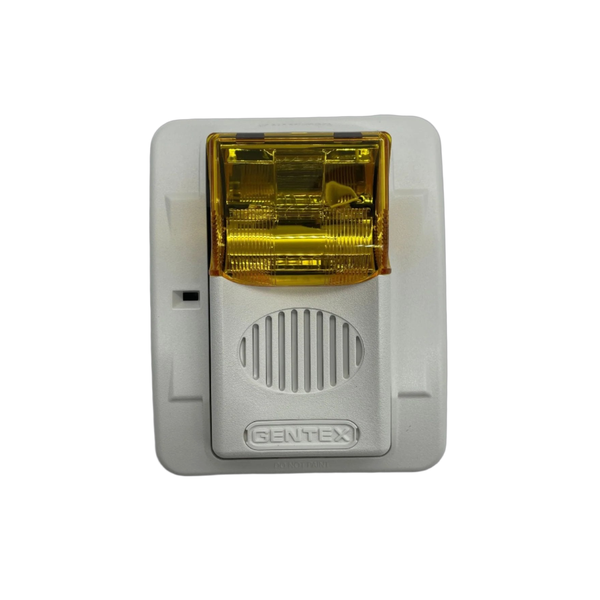

Gentex GECA24PWW

The Gentex GECA24PWW is an amber-colored lens combination horn and strobe notification appliance featuring field-selectable candela output and synchronized temporal tones. This wall-mount device combines high-intensity strobe with audible alarm for comprehensive emergency notification in fire alarm systems requiring both visual and audio signaling.

Key Features

• Amber colored lens with white faceplate for distinctive visual identity
• Field-selectable strobe candela: 15, 30, 60, 75, or 110 candela options
• Multiple tone options: continuous, synchable temporal 3, mechanical chime, and whoop
• Sound output: 62-82 dBA reverberant, 100 dBA anechoic at 10 feet
• Wall-mount design with 4-inch die-cast mounting bracket incorporating Super-Slide feature
• Pre-wiring and testing-friendly design
• Operating current of 47 mA or less at 24 VDC for 15 Cd strobe

Technical Specifications

• Operating Voltage: 16-33 VDC (24 VDC nominal)
• Strobe Output (selectable): 15, 30, 60, 75, 110 candela
• Horn Output Tones: Continuous, Temporal 3, Mechanical, Whoop, Synchable
• Sound Level: 62-82 dBA (reverberant), 100 dBA (anechoic)
• Strobe Current: 47 mA or less @ 24 VDC (15 Cd)
• Lens Color: Amber
• Faceplate: White PLAIN (no lettering)
• Mounting: Wall mount, 4-inch die-cast bracket with Super-Slide feature

Certifications

• UL 1971 synchronized strobe listing
• UL 464 audible signaling compliance
• Gentex GEC Series addressable compatibility
