Gentex GEH24-R
Gentex GEH24-R
Only 2 left!

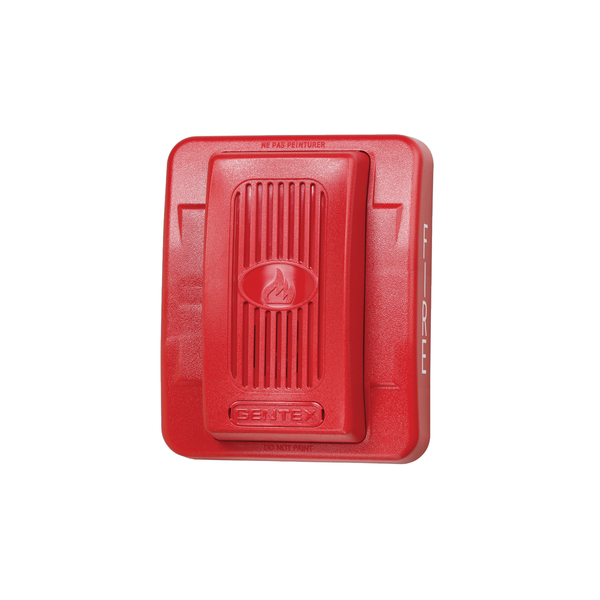

The Gentex GEH24-R is a low-profile electronic horn from the Commander2 Series, built for dependable audible-only alarm signaling on 24 VDC notification appliance circuits with a red faceplate. Installers get switch-selectable high or low dBA output plus a choice of tone patterns (chime, whoop, mechanical, or 2400 Hz) and continuous or temporal-3 cadence, so one horn model covers several application needs. Like the rest of the Commander2 line it uses the Super-Slide bracket and Checkmate voltage-verification terminals to cut installation and testing time.
Key Features
- Low-profile electronic horn, audible-only signaling appliance
- Switch-selectable high/low dBA output
- Switch-selectable tone: chime, whoop, mechanical, or 2400 Hz, in continuous or temporal-3 pattern
- Super-Slide® bracket and Checkmate® instant voltage verification
- Tamperproof re-entrant grille; surface-mounts with the Gentex GSB back box
Technical Specifications
- Nominal voltage: 24 VDC
- Input terminals: 12 to 18 AWG
- Synchronization: via Gentex AVSM control module or compatible FACP
- Color: red faceplate (also available off-white)
Certifications
- ANSI/UL 464 and ANSI/UL 1971 Listed; CAN/ULC listed; IBC/IFC/IRC compliant
