Gentex GEH24-W
Gentex GEH24-W
Only 6 left!

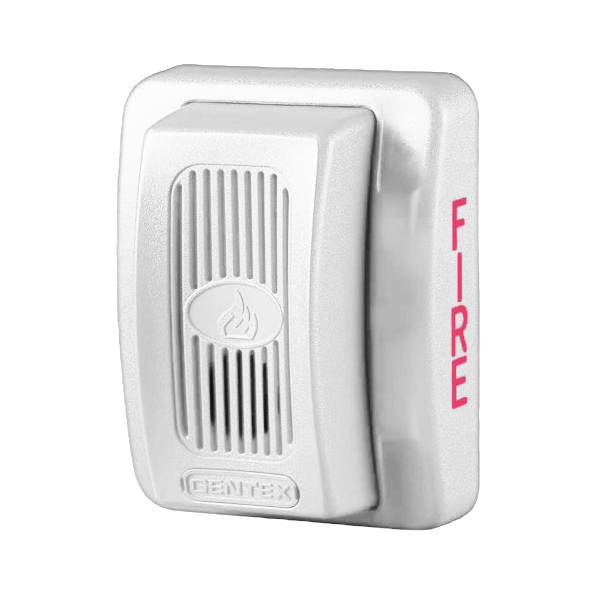

The Gentex GEH24-W is a low-profile, wall-mount electronic horn built for 24 VDC life-safety and fire alarm applications, finished with a white faceplate. It produces a high-decibel, 3100 Hz piercing tone meant to cut through ambient noise, and as a 2-wire polarized appliance it is designed for supervised notification appliance circuits. Like other Commander2-family devices it uses the Super-Slide mounting bracket for pre-wiring and the Checkmate system for voltage verification without pulling the horn off the wall.
Key Features
- Electronic horn, audible-only appliance with white faceplate
- Switch-selectable high/low dBA; Temporal 3, Continuous, and Mechanical tone options
- Super-Slide® bracket for efficient pre-wiring and supervision testing
- Checkmate® built-in terminals for instant voltage verification
Technical Specifications
- Nominal voltage: 24 VDC (16-33 VDC range)
- Tone frequency: 3100 Hz peak
- Current draw: approximately 22 mA at 24 VDC, high-volume setting
- Synchronization: via Gentex AVSM module or compatible FACP
Certifications
- ANSI/UL 464 Listed
