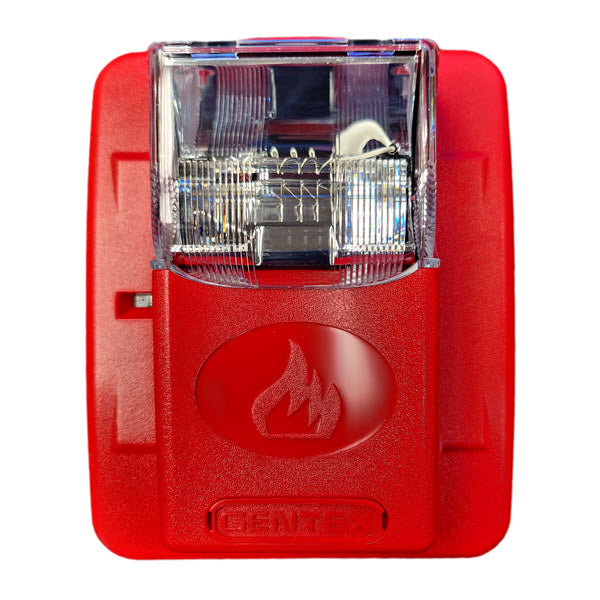

Gentex GES24-1575WR
Gentex GES24-1575WR
In stock!
The Gentex GES24-1575WR is a red evacuation strobe providing fixed 15/75 candela dual-output for synchronized life-safety alerting in multi-level environments. Operating at 24V with a 1 Hz flash rate that maintains constant cadence regardless of input voltage variation, this low-profile horn strobe features field-adjustable horn dBA output and selectable temporal alarm patterns, supporting UL 464 installation codes with audible/visual separation capability.
Key Features
- Dual candela output (15/75 cd) for adaptable visibility coverage
- Field-adjustable horn dBA level and temporal pattern programming
- Independent horn silencing capability while strobe continues operation
- SuperSlide bracket for supervised testing installation
- Checkmate instant voltage verification system integrated
- Tamper-proof reentrant grill design
Technical Specifications
- Voltage: 24VDC operation
- Strobe Candela: Fixed 15/75 cd with 1 Hz flash rate
- Horn Output: Field-adjustable dBA level
- Alarm Tone: Continuous or temporal 3 pattern programming
- Wiring: Separate in/out field wiring (12 AWG/3.25 mm²)
- Mounting: Low-profile screw terminal installation
- Color: Red finish
- Operating Current: Low power consumption design
Certifications
- ANSI/UL 464 Listed (Audible Signaling Appliances)
- ANSI/UL 1971 Listed (Signaling Devices for Hearing Impaired)
- CAN/ULC listed
- IBC/IFC/IRC Standards compliant
- NFPA 72 standards compliant
- ADA 4.28.3 requirements satisfied
