Gentex GHSLF177W
Gentex GHSLF177W
Only 6 left!

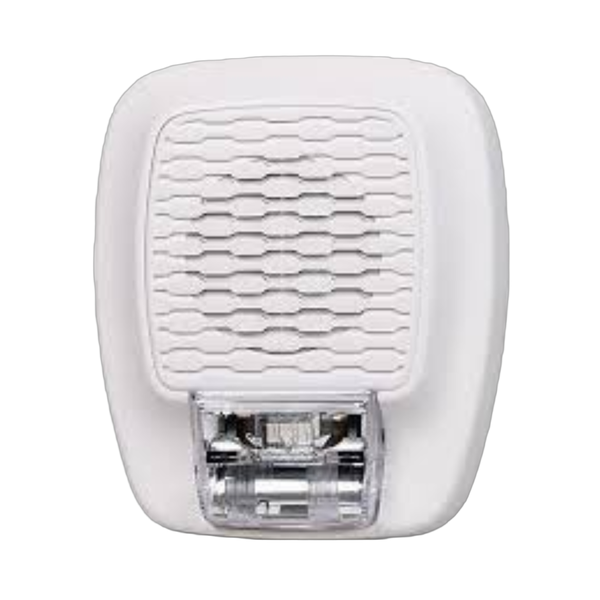

The Gentex GHSLF177W is a low-profile, low-frequency horn/strobe from the GHSLF Series, fixed at 177 candela with an off-white faceplate for large or high-ambient-noise areas that need both a high-output strobe and a 520 Hz low-frequency horn. A field jumper switches the horn between normal and loud decibel levels, and adding a Gentex GTSM synchronization module unlocks a Temporal 4 pattern alongside the standard Temporal 3 tone.
Key Features
- 520 Hz square-wave, low-frequency audible signal (Temporal 3, or Temporal 4 with a GTSM module)
- Jumper-selectable normal or loud dBA output
- Super-Slide® bracket for easy supervision and Checkmate® Instant Voltage Verification
Technical Specifications
- Strobe Output: Fixed 177 candela
- Faceplate: Off-white
- Nominal Voltage: 24 VDC
- Dimensions: 6-1/2" H x 5-1/2" W x 2" D
- Input Terminals: Accept 12 to 18 AWG wire
Certifications
- ANSI/UL 1971, ANSI/UL 464, CAN/ULC S525, and CAN/ULC S526 Listed
