Gentex H
Gentex H
Only 1 left!

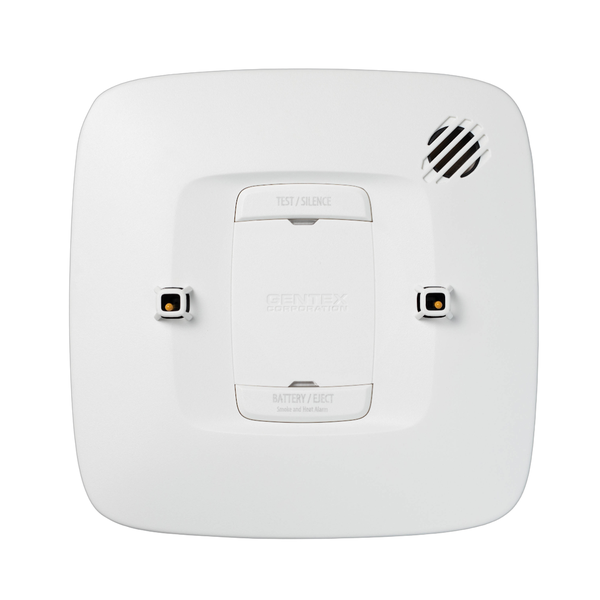

The Gentex H (120-H) is a 120VAC, 60Hz heat alarm built for kitchens, garages, and furnace rooms where smoke detection isn't practical. It uses a dual-action sensor -- a 135°F fixed-temperature element plus a 15°F-per-minute rate-of-rise element -- to catch both slow and fast-developing fires, sounding an 85 dBA Temporal 3 signal and interconnecting with up to 12 Gentex smoke alarms and 6 heat alarms so the whole system responds together.
Key Features
- Dual-action detection: 135°F fixed temperature plus 15°F/min rate-of-rise
- Quick-disconnect wiring harness for easy installation and maintenance
- Self-restoring (non-latching) once the heat source is removed
- Tandem capable with up to 12 Gentex smoke alarms and 6 heat alarms
Technical Specifications
- Power: 120VAC, 60Hz (AC-only, no battery backup)
- Audible Output: 85 dBA @ 10 ft, Temporal 3 pattern
- Mounting: Standard 4" octagonal or square electrical box
Certifications
- ANSI/UL 539 Listed (Single and Multiple Station Heat Alarms)
