Gentex H220
Gentex H220
Out of stock; call for lead time

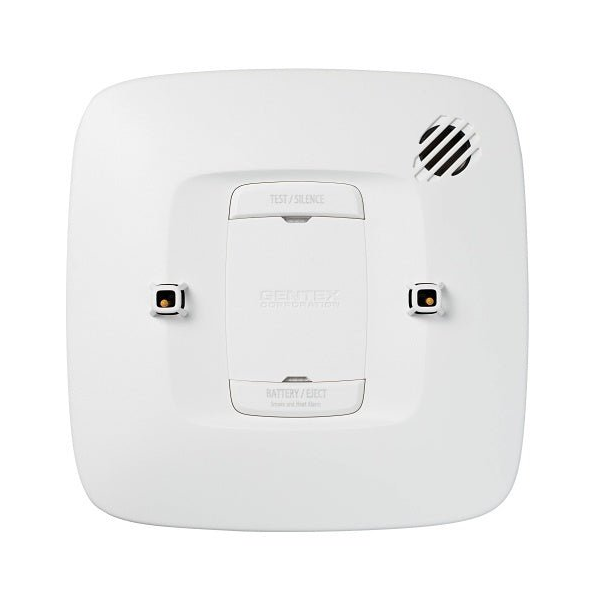

The Gentex H220 is a 220 VAC heat alarm built to warn of the heat produced by an actual fire in dwelling units including homes, apartments, hospitals, hotels, and motels. It uses a self-restoring isolated 135°F thermal element rather than a smoke sensor, so it is meant for spaces where dust, steam, or cooking fumes would cause nuisance alarms on a photoelectric unit. A 9V alkaline battery keeps the alarm's temporal-3 evacuation horn and its tandem interconnect working if building power is lost.
Key Features
- Heat-only sensing via a self-restoring, isolated 135°F thermal element (no smoke sensor)
- Temporal 3 evacuation signal pattern specifically for heat annunciation
- 8-hour alarm memory and low/missing battery indicator
- Quick-disconnect wiring harness; interconnects with Gentex tandem-capable smoke alarms
- Dust cover and fully insect-screened housing to reduce contamination and false alarms
Technical Specifications
- Part number: 917-0080-002
- Operating voltage: 220 VAC, 50/60 Hz (0.135 amps operating current)
- Alarm horn: 85 dBA at 10 feet, 3100 Hz
- Size: 5.5"x5.5" overall (5.0"x5.0" at base), 1.75" deep
- Secondary power: 9V alkaline battery (Duracell MN 1604)
Certifications
- ANSI/UL 539 Listed; NFPA 72 and IBC/IFC/IRC compliant
