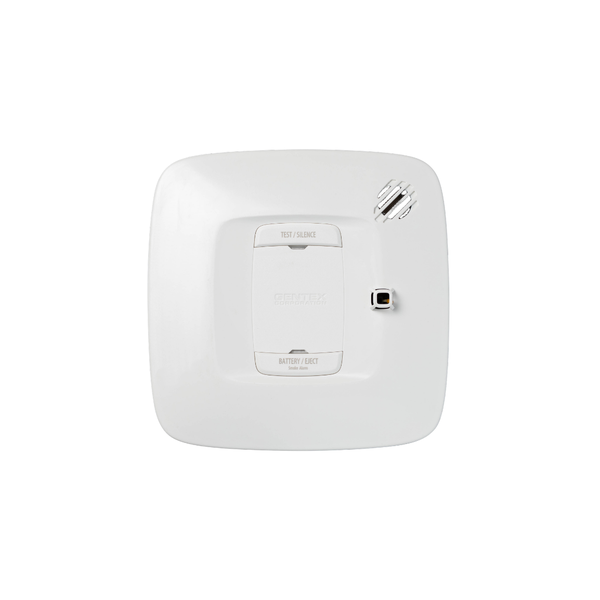

Gentex SR220
Gentex SR220
Out of stock; call for lead time
The Gentex SR220 is a 220 VAC multi-criteria photoelectric smoke alarm built for evacuation signaling in dwelling units such as apartments, hotels, and hospitals, with a programmable relay output for remote annunciation. Its light-scattering photoelectric sensor is engineered to virtually eliminate nuisance alarms while still responding quickly to real smoke conditions, and a 9V alkaline battery keeps the alarm and its relay working through a building power loss. The relay itself continues to operate on battery back-up, so a connected panel or remote device still receives a signal even without AC present.
Key Features
- Multi-criteria photoelectric smoke sensing to reduce nuisance alarms
- One Form A and one Form C relay contact (0.5 amps) for remote annunciation, powered through battery back-up
- 10-year end-of-life indicator and low/missing battery indicator
- Push-button self-test and functional-test features; 8-hour alarm memory
- Interconnects with up to 18 Gentex tandem-capable devices, including up to 12 S or SC series smoke alarms
Technical Specifications
- Part number: 917-0076-002
- Operating voltage: 220 VAC, 50/60 Hz (0.135 amps operating current)
- Alarm horn: 85 dBA at 10 feet, Temporal 3 pattern, nominal 2.5% sensitivity
- Size: 5.5"x5.5" overall (5.0"x5.0" at base), 1.75" deep
- Secondary power: 9V alkaline battery (Duracell MN 1604)
Certifications
- ANSI/UL 217, 9th Edition Listed; NFPA 72 and IBC/IFC/IRC compliant
