Gentex SSPK24WLPW

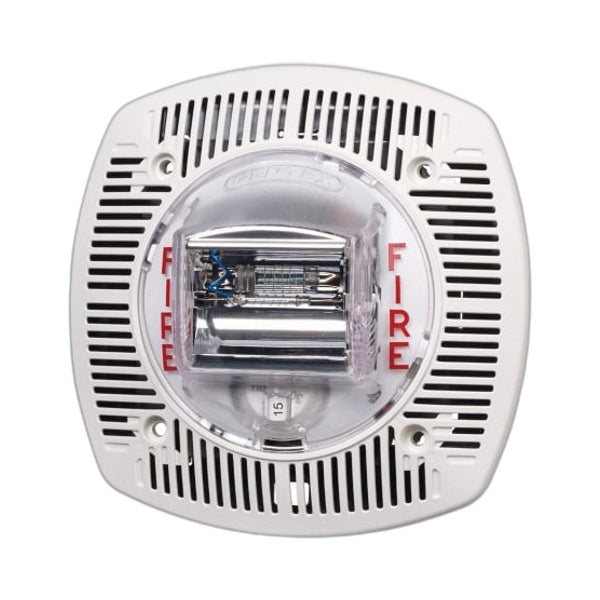

The Gentex SSPK24WLPW is an off-white low-profile wall-mount speaker strobe providing synchronized audio and visual fire alarm notification with selectable candela output. Featuring field-selectable power taps from 1/8W to 4W and strobe candela options of 15, 30, 60, 75, or 110, this 24V device combines voice communication capability with dependable evacuation signaling in a compact form factor suitable for standard wall-mounted back boxes.

Key Features

• Multi-candela strobe with field-selectable settings (15, 30, 60, 75, 110 cd)
• Dual-voltage speaker capability (25 or 70.7 VRMS)
• Field-selectable power taps from 1/8W, 1/4W, 1/2W, 1W, 2W, or 4W
• Low-profile design compatible with standard 4-square x 2-1/8 deep back boxes
• Synchronization support via Gentex AVSM Control Module, FACPs, or power supplies

Technical Specifications

• Voltage: 24V operation
• Speaker Output: 25 or 70.7 VRMS selectable
• Power Taps: 1/8W, 1/4W, 1/2W, 1W, 2W, 4W options
• Strobe Candela: Field-selectable 15, 30, 60, 75, 110 cd
• Color: Off-white (Gentex "white" designation)
• Mounting: Wall-mount, low-profile form factor
• Back Box: Compatible with 4 square x 2-1/8 deep configuration without extension ring

Certifications

• ANSI/UL 1480 Listed (Audible Signaling Devices)
• ANSI/UL 1971 Listed (Signaling Devices for Hearing Impaired)
• ANSI/UL 1638 Listed (Strobe Signal Devices)
• 3-year manufacturer warranty from date of purchase
