HID 920PTNNEK00000
HID 920PTNNEK00000
Out of stock; call for lead time

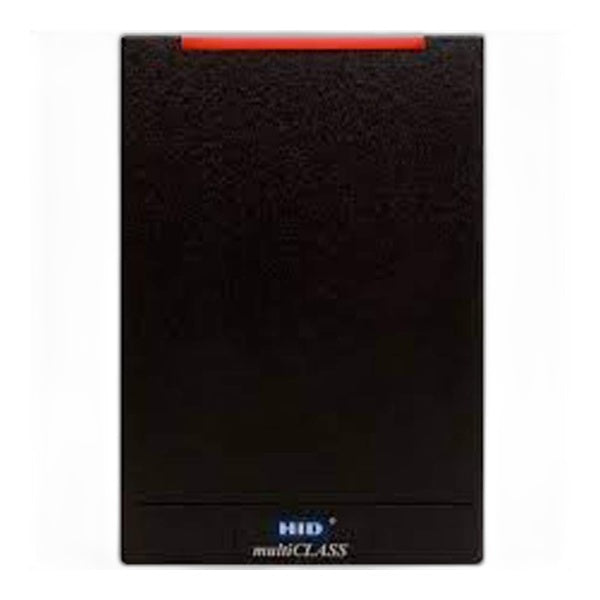

The HID 920PTNNEK00000 is a multiCLASS SE RP40 multi-technology smart card reader built on HID's iCLASS SE platform, designed for standard wall-switch box mounting in door access control applications. It reads both 125 kHz HID Prox and 13.56 MHz high-frequency credentials in a single reader, including iCLASS SE, standard iCLASS, MIFARE Classic, MIFARE DESFire EV1, and magnetic stripe formats, and communicates to the door controller over Wiegand or OSDP.
Key Features
- Multi-technology support: 125 kHz HID Prox plus 13.56 MHz iCLASS SE, iCLASS, MIFARE Classic, and MIFARE DESFire EV1
- Supports Open Supervised Device Protocol (OSDP) for secure reader-to-controller communication
- Also reads magnetic stripe credentials
- Standard wall-switch box mounting, pigtail termination
Technical Specifications
- Power: 5-16 VDC, linear supply recommended
- Current draw: 55/121 mA
- Read range: up to 4.25" (11.0 cm)
- Transmit frequency: 13.56 MHz
- Dimensions: 4.8" x 3.3" x 0.95"; weight 8.8 oz
- Operating temperature: -31°F to 150°F
- Wiegand output: 32-bit support
