Hochiki | ASB

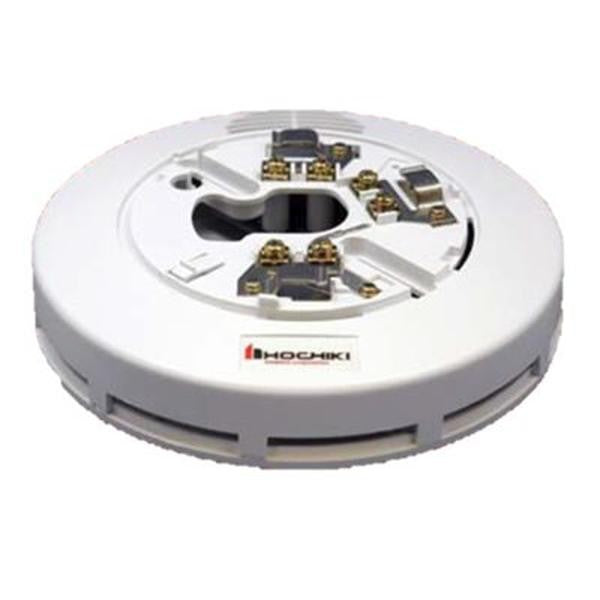

The ASB Analog Sounder Base is designed for use with Hochiki analog sensors ALG-V, ALK-V, ACA-V, AIE-EA, and ATG-EA. Each addressable base is to be connected to a Hochiki America Corporation DCP Signaling Line Circuit (SLC). The ASB provides an audible alarm in the immediate vicinity, typical applications are hotels, apartments, and hospitals. Each device has 16 states that are programmed with the desired output pattern to be used (e.g., “Temporal” or “March”) for each state.

STANDARD FEATURES

• Programmable evacuation codes - Continuous, March, ANSI Temporal patterns
• Base learns the sensor address and assumes an upper range address (128-254)
• Up to 127 sensors and 127 ASBs can be used on one SLC loop
• Can be alarmed or reset by zone or by individual address
• ASB SLC loop wire resistance = 50 ohms Max.(total SLC wire run length)
• High sound pressure level (85dB SPL at 10 feet)
