Hochiki CZM

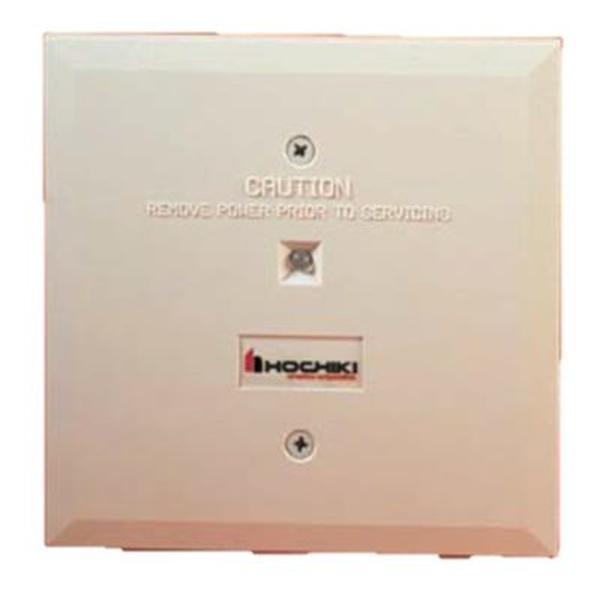

The Hochiki DCP-CZM is a conventional zone module that lets an analog addressable fire alarm system incorporate ordinary two-wire conventional detectors or pull stations onto an SLC loop as a single addressable point. Each module monitors one zone of up to 25 conventional devices and reports that zone's status directly to the control panel, while a green LED blinks as the panel polls the module and a panel-controlled red LED latches when a device in the zone goes into alarm. It supports both Class A and Class B wiring and provides auxiliary power to the conventional devices connected to it, letting a loop carry up to 127 addressable points overall.

Key Features

• Brings two-wire conventional detectors and pull stations onto an addressable SLC loop
• Monitors one zone of up to 25 conventional devices per module
• Supports Class A and Class B wiring; supplies auxiliary power to zone devices
• Green LED blinks when polled; red LED latches on alarm (panel controlled)

Technical Specifications

• Addressable device range: 1-127 per SLC loop
• Compatible conventional devices: SLR, SIJ, SLK, SLV, DCD, DFE, SIH series

Certifications

• UL 864, 9th Edition Listed
