Johnson Controls AS-UNT-111-1-RC
Johnson Controls AS-UNT-111-1-RC
Out of stock; call for lead time

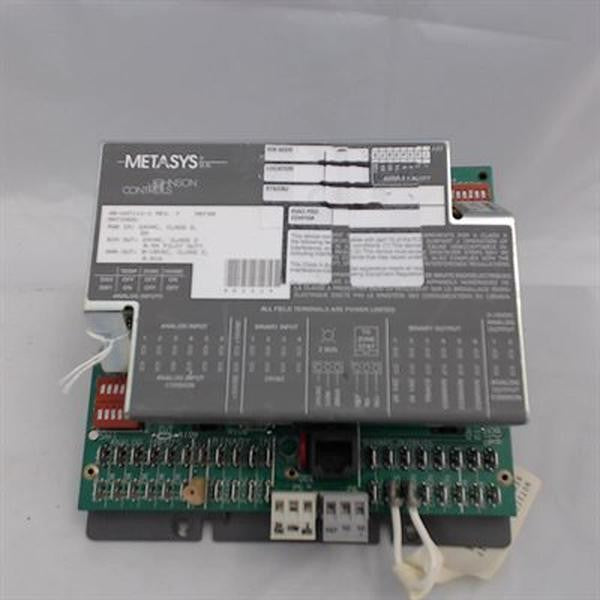

The Johnson Controls AS-UNT-111-1 is a Metasys UNT (Unitary) Controller, a standalone electronic controller for direct digital control of single-zone HVAC terminal equipment such as packaged rooftop units, unit ventilators, fan coils, and heat pumps. It can run as a standalone controller or join a Johnson Controls Metasys N2 network, where its point configuration is set up through the HVAC PRO for Windows software.
Key Features
- 6 analog inputs, 4 binary inputs, 2 analog outputs, and 6 binary outputs
- Runs standalone or networked over Zone Bus or N2 communication
- Configurable as a rooftop, unit ventilator, heat pump, or fan coil application controller, or as a generic I/O device
Technical Specifications
- Power: 24 VAC, 50/60 Hz
- Operating Temperature: 32 deg F to 140 deg F
- Memory: 8K EEPROM, 64K ROM, 32K RAM
- Dimensions (without enclosure): 165 x 163 x 56 mm (6.5 x 6.4 x 2.2 in.)
- Terminals: Quick-connect spade lug terminals
Certifications
- UL Listed, CSA Certified
