Kidde-Fenwal DS-SB
Kidde-Fenwal DS-SB
Only 2 left!

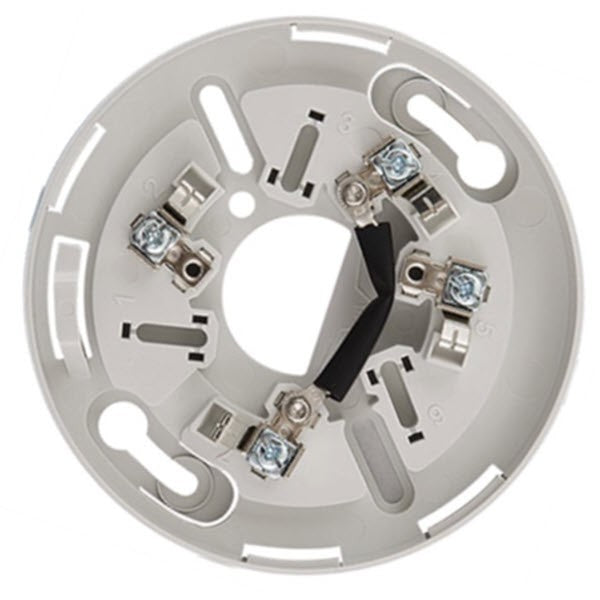

The Kidde-Fenwal DS-SB is a standard detector mounting base designed for use with Kidde SmartOne addressable fire detectors. It provides a secure connection point for detectors mounted in electrical boxes and simplifies wiring to the addressable fire alarm system's signaling line circuit. The 4-inch diameter base includes accessible wiring terminals and an optional locking feature for vandal protection in institutional settings.
Key Features
- Standard 4-inch diameter detector mounting base for SmartOne protocol detectors
- Includes 6-inch trim ring to conceal surface imperfections around electrical boxes
- Optional locking feature prevents unauthorized detector removal
- Class B (Style 4) non-polarity-sensitive wiring configuration
- Accessible room-side wiring terminals for simplified installation and maintenance
- Compatible with remote LED indication on compatible detector models
Technical Specifications
- Base Diameter: 4 inches
- Included Trim Ring: 6 inches
- Wiring Configuration: Class B (Style 4), non-polarity sensitive
- Compatible Detectors: Kidde DS-series and KS-series SmartOne addressable detectors (DS-PS, KS-PS, etc.)
- SLC Connection: Standard SmartOne protocol signaling line circuit terminals
- Optional Features: Locking base prevents unauthorized detector head removal
- LED Support: Compatible with remote LED modules where applicable
Certifications
- UL Listed detector mounting base
- NFPA 72 compliant for SmartOne addressable fire detection systems
