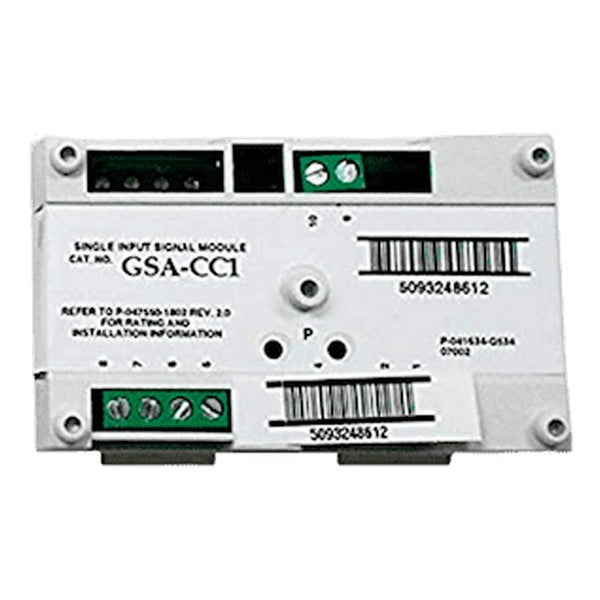

Kidde GSA-CC1

The Kidde GSA-CC1 is an addressable signal module from Kidde's Signature Series, serving as a riser selector that routes notification appliance, speaker, and firefighter telephone circuits from the control panel to field devices. The module intelligently manages audible and visible signal output based on personality codes configured by the installer, providing monitored circuit diagnostics and integrated input protection.

Key Features

• Single-address intelligent module for Signature Series addressable systems
• Routes notification appliance circuits, audio evacuation speakers, and firefighter telephone signals
• Requires one address on the signaling line circuit (SLC) with electronic address assignment
• Open and short circuit monitoring on all output circuits prevents wiring damage
• Diagnostic LEDs (green=normal, red=alarm/active) for field troubleshooting
• Configurable personality codes for signal output, three-state phone, or four-state phone operation
• Low power consumption: 310 µA standby, 135 µA activated

Technical Specifications

• Operating Voltage: 15.20 to 19.95 VDC
• Standby Current: 310 µA
• Activated Current: 135 µA
• Circuit Type: Class B supervised
• Personality Codes: Code 5 (signal output), Code 6 (3-state telephone), Code 26 (4-state telephone)
• Installation: Standard mounting with electronic address configuration
• Monitoring: Continuous output circuit integrity checks

Certifications

• UL 864 Listed (varies by personality code)
• CAN/ULC-S527 compliant
• FCC Part 15 compliant
