Kidde | GSA-M278
Pull Station Double Action-One Stage Fire Alarm

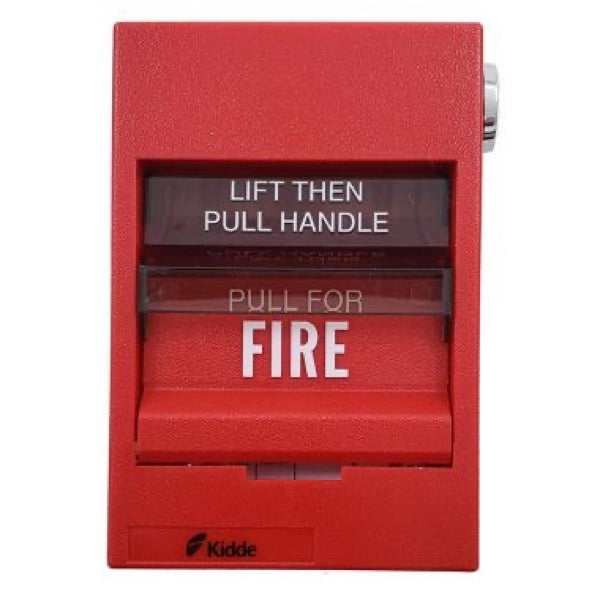

Kidde GSA-M278 Double Action Single Stage Manual Pull Station
The Kidde GSA-M278 is a double-action, single-stage manual pull station designed for use with Kidde’s Signature Series fire alarm systems. Constructed from durable red-colored Lexan, this contemporary-style station ensures reliable manual initiation of fire alarms in various environments.
Key Features:
• Double-Action Mechanism: To initiate an alarm, users must first lift the upper door marked “LIFT THEN PULL HANDLE,” then pull the alarm handle, reducing the likelihood of accidental activation.
• Durable Construction: Made from robust red-colored Lexan, the GSA-M278 is designed to withstand harsh conditions and provide long-lasting performance.
• ADA Compliant: Meets the Americans with Disabilities Act (ADA) requirements for manual pull stations, ensuring accessibility for all users.
• Intelligent Addressing: Features electronic addressing with non-volatile memory, storing programmable addresses, serial numbers, device types, and job numbers for efficient system integration.
• Diagnostic LEDs: Equipped with status LEDs; a flashing green indicates normal polling, while a flashing red signifies an alarm state, facilitating easy status monitoring.
Specifications:
• Operating Voltage: 15.2 to 19.95 VDC (19 VDC nominal)
• Operating Current:
• Standby: 250 µA
• Activated: 400 µA
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Humidity: 0 to 93% RH
• Compatibility: Compatible with Kidde’s Signature Loop Controller
