Kidde GSA-T3T4
Kidde GSA-T3T4
Only 4 left!

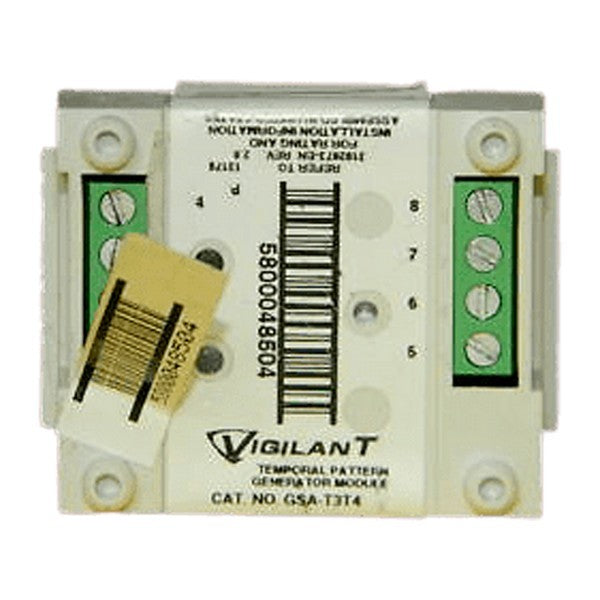

The Kidde (EST) GSA-T3T4 is an addressable temporal pattern generator module that drives a compatible audible base to sound either the standard fire alarm temporal-3 (TC3) pattern or the temporal-4 (TC4) carbon monoxide pattern, with the fire alarm control panel selecting the channel and synchronizing the output. It mounts to the associated sounder base and draws power directly from the system's regulated 24V riser or SLC circuit rather than needing a separate power supply.
Key Features
- Generates temporal-3 (fire) or temporal-4 (CO) audible patterns on command from the panel
- Compatible with GSA-SBT, SIGA-AB4G-LF, and SB4U-LF audible bases
- Mounts in a standard 2-1/2 in. deep single-gang box, or a 4 in. square box with single-gang trim ring
Technical Specifications
- Riser voltage: 16-33V DC; SLC voltage: 15.2-19.0V DC
- Standby current: 53 microamps; alarm current: 373 microamps (TC3) / 530 microamps (TC4)
- Wiring: 12-18 AWG; SLC circuit Style 4 (Class B) or Style 6 (Class A)
- Operating temperature: 32-120F; storage -4-140F; humidity 0-93% non-condensing
Certifications
- UL Listed to ANSI/UL 864 and ANSI/UL 2017; CAN/ULC-S527 Listed
- FCC and Industry Canada compliant
