Kidde INT-7ATW
Kidde INT-7ATW
Out of stock; call for lead time

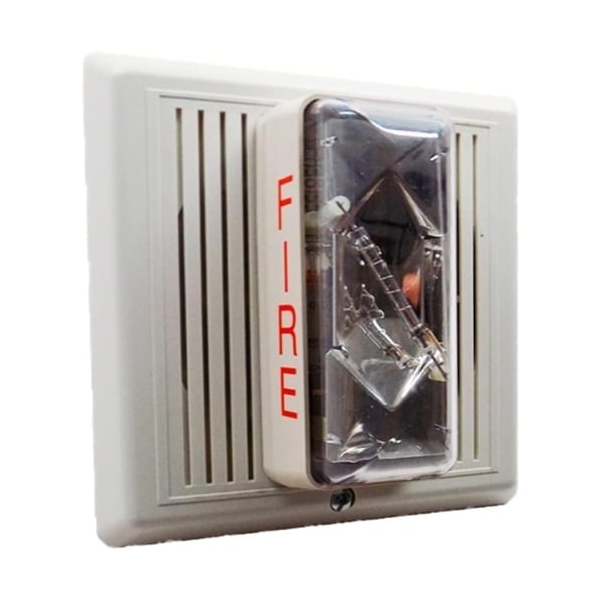

The Kidde INT-7ATW is a 15/75 cd temporal horn-strobe from the INT Series Integrity line, combining an audible horn and a visual strobe in one white wall-mount housing marked "FIRE." It operates on 16 to 33 Vdc and must be wired to a signal circuit supplying constant, non-pulsed voltage, with the strobe visible from almost any position in the protected space and the horn producing a low-frequency tone audible above moderate ambient noise.
Key Features
- Combined horn and strobe in a single white appliance with "FIRE" wall lettering
- 15/75 cd temporal-pattern strobe output
- Rugged, fire-retardant high-impact plastic housing with slightly textured surface
- Single-screw mounting plate for fast installation
Technical Specifications
- Operating voltage: 16-33 Vdc, constant (non-pulsed) signal circuit required
- Terminals accept up to #12 AWG (2.5mm²) wire, polarized connections
- Mounts to standard North American 4" square or two-gang boxes
Certifications
- UL 1971 Listed as a signaling appliance for the hearing impaired
- UL 1638 Listed as a protective visual signaling appliance
