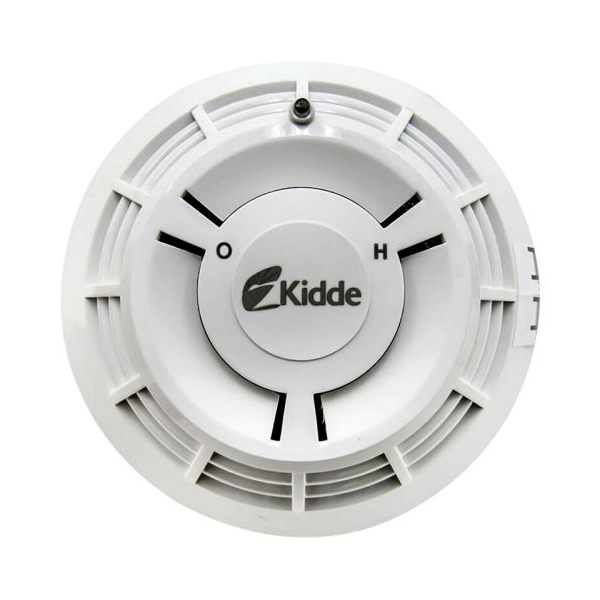

Kidde KI-OSHD

The Kidde KI-OSHD is an intelligent multisensor detector from the Optica series that combines an optical (photoelectric) smoke sensor with a rate-of-rise heat sensor carrying a fixed-temperature backup. Running on a Kidde Intelligent Loop controller, it lets the connected panel weigh both smoke and heat signals together to catch smoldering fires as well as fast-flaming ones while resisting common nuisance sources.

Key Features

• Combined optical smoke sensor and rate-of-rise/fixed-temperature heat sensor in one head
• Continuous self-diagnostics with environmental compensation to maintain sensitivity over time
• Communicates over the signaling line circuit (SLC) via a Kidde Intelligent Loop controller

Technical Specifications

• Sensing: Optical smoke + rate-of-rise/fixed-temperature heat, combined
• Compatibility: Kidde Intelligent Loop control panels only
• Mounting: North American 1-gang, 3-1/2" or 4" octagon, or 4" square boxes (1-1/2" deep); also European BESA/1-gang boxes

Certifications

• UL Listed intelligent multisensor smoke and heat detector
