Condition: New
Kidde VS1-G

Kidde VS1-G

Kidde VS1-G

Control Panel FA 1 Lp 64 Intl Dev Max 2 Cl B NAC

Vendor: Kidde

Type: Fire Alarm > Panels

SKU: KD-F1P1-5095

$1,122.99
$1,122.99
Shipping calculated at checkout.

Only 1 left!

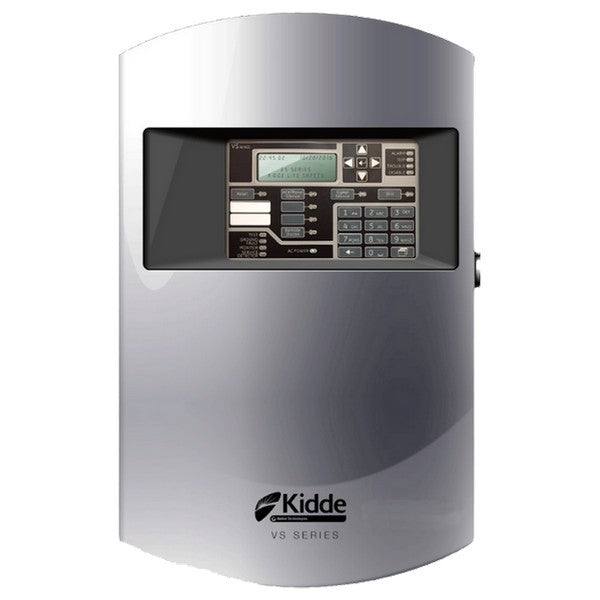

The Kidde VS1-G is an intelligent addressable fire alarm control panel housed in a surface-mount cabinet with a gray door, built around a single Class B Signature signaling loop supporting up to 64 addressable devices. It's sized for small to mid-range commercial buildings that don't need multi-loop capacity but still want full intelligent detection and reporting.

Key Features

  • Four-line LCD display for programming, status, and diagnostics
  • Built-in strobe synchronization with ANSI Temporal 3 and Temporal 4 coding patterns
  • Two programmable front-panel switches for custom system functions
  • Expandable to Class A wiring with the optional SA-CLA adapter, plus optional SA-DACT dual-line dialer

Technical Specifications

  • Loop capacity: 1 Class B Signature loop, up to 64 addressable devices
  • NAC output: 2 Class B circuits, 2.5A each (3.75A total power supply)
  • Primary power: 120VAC 60Hz, 1.3A maximum input
  • Battery support: up to two 10Ah batteries, 26Ah charging capacity
  • Relays: dual Form C alarm and trouble relays

Certifications

  • UL Listed intelligent addressable fire alarm control panel
