Kidde VS4-R

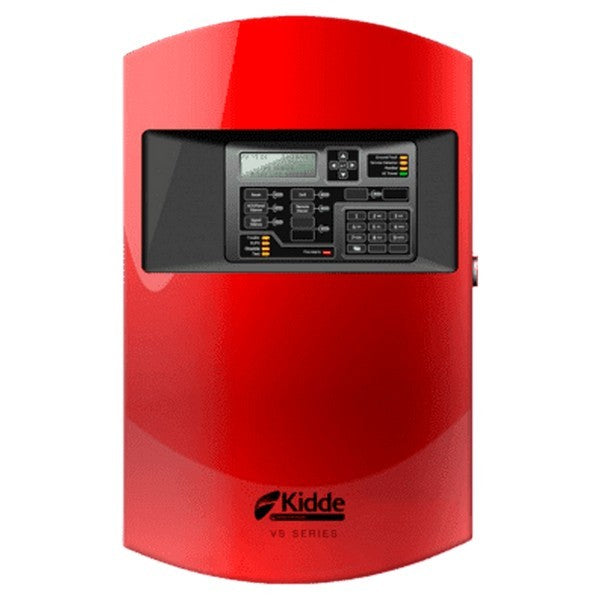

The Kidde VS4-R is an intelligent fire alarm control panel from Kidde Commercial's VS Series, housed in a red cabinet and shipped with one 250-point device loop already installed, supporting up to 125 detectors and 125 modules. The panel has room for up to two device loop controller modules in any combination of single- or dual-loop configurations, so a second loop can be added later without replacing the cabinet. It supports up to four Class B (or two Class A) notification appliance circuits, an optional 10A or 6.5A booster power supply for larger notification loads, and up to eight remote annunciators, with wiring runs of up to 20,000 feet per loop.

Key Features

• Ships with one 250-point device loop installed; expandable to two loops in single or dual configuration
• Supports up to 125 intelligent detectors and 125 modules per loop
• Optional Ethernet (SA-ETH), RS-232 (SA-232/SA-USB), and cellular gateway (KCG1) communication modules
• Sixteen conventional initiating device circuits and two additional NACs available with the RZI16-2 module

Technical Specifications

• Loop Capacity: 250 points per loop (up to 2 loops)
• Notification Circuits: Four Class B or two Class A NACs
• Wiring: Up to 20,000 ft per loop
• Remote Annunciators: Up to 8
• Cabinet Color: Red
