Condition: New

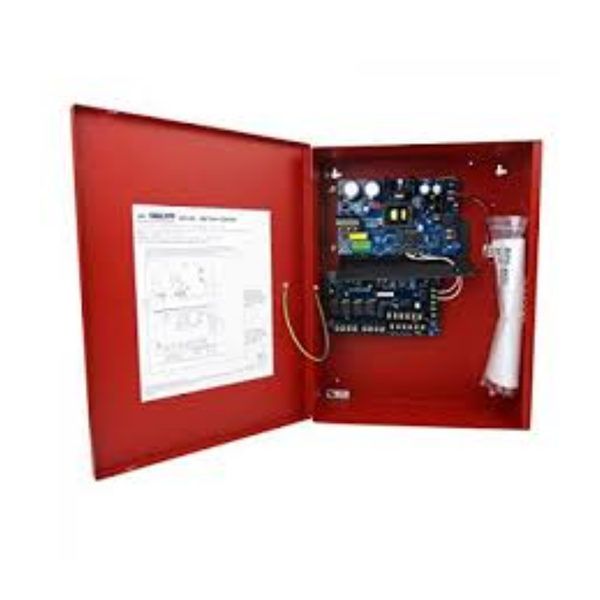

Mircom BPS-802
Mircom BPS-802
NAC Power Extender Input 120VAC Output
Regular price
$1,015.99
Sale price
$1,015.99
Regular price
Shipping calculated at checkout.
Out of stock; call for lead time
Key Features
- 8-amp remote power supply and battery charger
- Expands fire alarm system power for NAC circuits
- Four programmable NAC outputs (max 2.5A per output)
- Separate 1.0A auxiliary output for four-wire smoke detectors
- Cost-effective power expansion solution
Technical Specifications
- Maximum alarm current: 8 amps total across four outputs
- Output voltage: 24VDC regulated
- Programmable modes: Steady, Temporal Code 3, Strobe Synchronization
- Loop supervision and trouble signaling for Class A/B NAC circuits
- Parallel output configuration supporting up to 4A on single line
Certifications
- UL listed for fire protective signaling systems
- Meets ADA notification requirements
