Mircom CF-200-MP
Mircom CF-200-MP
Out of stock; call for lead time

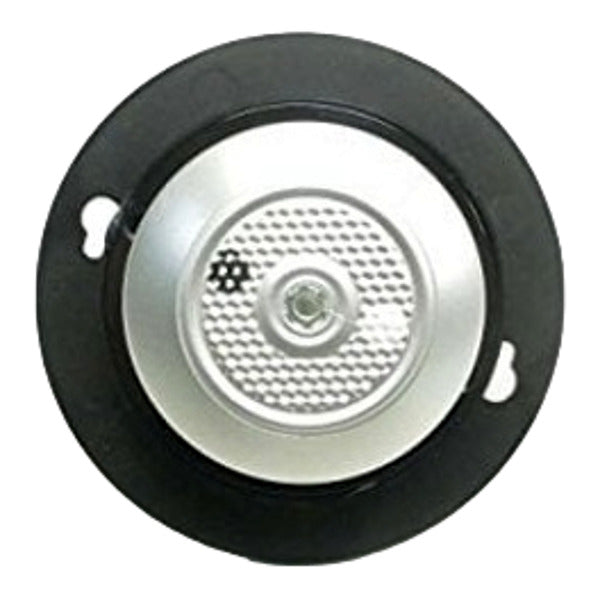

The Mircom CF-200-MP is a fixed-temperature-only heat detector rated at 200°F (93°C), built with a moisture-proof black phenol-plastic seal plate and pigtail leads for hazardous or corrosive locations. It's identified by a black dot and a white dot on its heat collector fin and is intended for environments with high humidity, corrosive elements, or spray-washing that would cause a smoke detector to false-alarm.
Key Features
- Fixed-temperature-only detection via a spring-loaded, fusible-alloy plunger
- Releases at 200°F (93°C), closing a normally-open contact set
- Moisture-proof seal plate designed for corrosive/washdown environments
- Black and white dots on heat collector fin identify the 200°F rating
Technical Specifications
- Spacing on an uninterrupted ceiling: 25 ft. (7.6m)
- Contact rating: 3A @ 125VAC, 1A @ 28VDC, 0.3A @ 125VDC, 0.1A @ 250VDC
- Dimensions: 5.25" diameter x 2.0" height; Weight: 0.41 lb.
Certifications
- UL and ULC Listed
