Mircom CZ-6

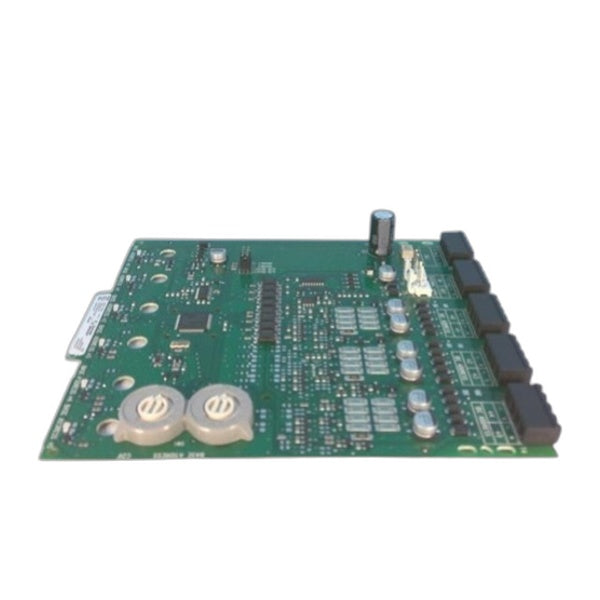

The Mircom CZ-6 is a six-zone interface module that connects a two-wire conventional detection zone to an intelligent addressable fire alarm system. It is part of Mircom's 500 Series multiple input/output modules and is particularly useful for retrofit projects, letting existing conventional smoke detectors and normally-open contact devices report into a modern addressable loop without being replaced.

Key Features

• Six addressable universal zone module supporting N/O contact and conventional smoke detectors
• Configurable for any input type, reporting normal, open, or alarm status per zone
• Supervises both the detector zone wiring and the connection to the external power supply
• Well suited for retrofitting conventional detection zones onto an addressable loop

Technical Specifications

• Operating voltage: 15-32 VDC
• Maximum SLC wiring resistance: 40 ohms
• Operating temperature range: 32-120°F (0-49°C)
• Requires an external resettable power supply; mounts in a BB-2 or BB-6 enclosure
• First module addressed 01-94; additional modules assigned to the next five higher addresses

Certifications

• Part of Mircom's UL-listed 500 Series input/output module line
