Mircom IM-10

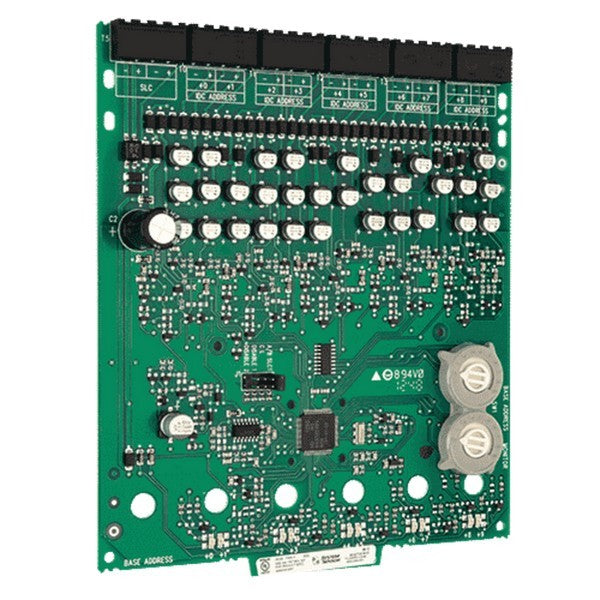

The Mircom IM-10 is an intelligent addressable ten-input monitor module built for Mircom's FleX-Net fire alarm system line. It lets up to ten separate supervised dry-contact devices share a single Signaling Line Circuit (SLC) address, making it a space- and cost-efficient way to bring multiple monitoring points into an addressable system.

Key Features

• Monitors up to ten supervised dry-contact inputs from a single SLC address point
• Improves address-point efficiency in large or multi-device fire alarm installations
• Well suited for sprinkler valve tamper switches, waterflow detectors, door holder contacts, and other supervisory devices
• Reports the supervised state (normal, open, or short) of each monitored device back to the fire alarm control panel

Technical Specifications

• Ten supervised dry-contact inputs per module
• Compatible with Mircom FX-2000, FX-2003, FX-351, and FX-353 addressable control panels
• Mounts up to two modules in a BB-2 enclosure, or up to six modules in a BB-6 enclosure with CH-6 chassis
• Accepts UL listed contact closure devices at each input

Certifications

• Designed for use with UL listed components in fire alarm systems
