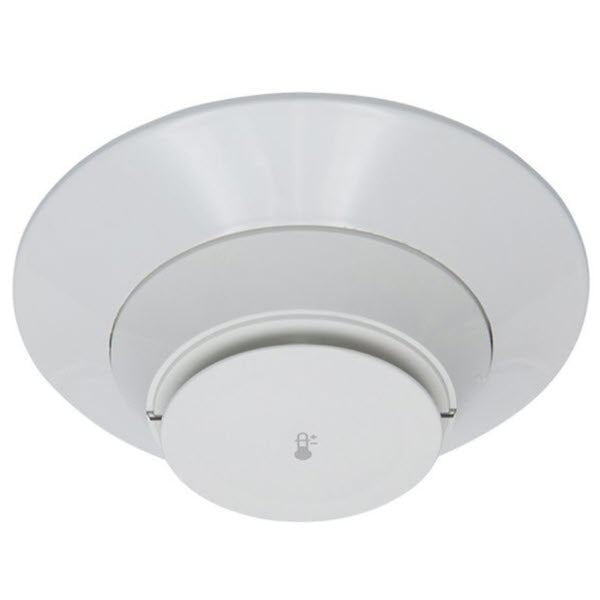

Mircom MIX-5351HAP

The Mircom MIX-5351HAP is a low-profile addressable thermal sensor from Mircom's Select Series, configured for 190°F high-temperature fixed detection. It plugs into a compatible base and communicates continuously with the fire alarm control panel using Mircom's Advanced Protocol, giving installers a modern, low-profile heat detector for areas that run hotter than standard 135°F detectors can tolerate.

Key Features

• Low-profile, modern white plug-in design
• 190°F fixed high-temperature detection, for use where standard 135°F detectors would false-alarm
• Dual LEDs for 360° visibility of detector status
• Rotary address switches for precise, tool-free device addressing
• Advanced thermistor sensing for a rapid response to a genuine heat condition
• Backwards compatible with CLIP mode for legacy Mircom systems, in addition to Advanced Protocol

Technical Specifications

• Fixed high-temperature detection point: 190°F (88°C)
• Operating temperature range: -4°F to 150°F (-20°C to 66°C)
• Height: 2.0 in (51 mm)
• Diameter: 6.2 in (156 mm) in B300-6/B300A-6 base, or 4.1 in (104 mm) in B501-WHITE/-IV base
• Operating voltage: 15 to 32 VDC
• Peak operating current @ 24 VDC: 200 µA
