Mircom MIX-M500SAP

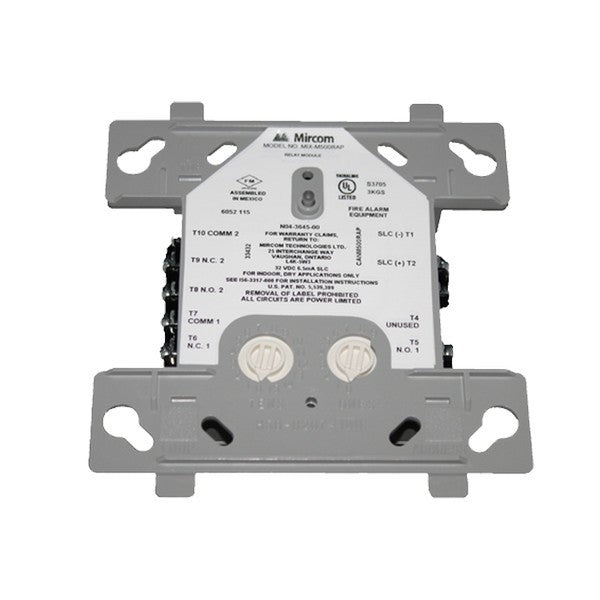

The Mircom MIX-M500SAP is a supervised control module for intelligent, two-wire addressable fire alarm systems, switching an external power supply or audio amplifier to a circuit of notification appliances. It supervises the wiring to its connected load and reports the circuit's status back to the panel as normal, open, or short circuit.

Key Features

• Switches an external DC power supply or audio amplifier (up to 80 VRMS) to notification appliances
• Supervises connected wiring and reports NORMAL, OPEN, or SHORT CIRCUIT status
• Built-in rotary decade switches for individual address selection
• Supports Styles Y and Z supervision
• Mounts directly to a standard 4-inch square electrical box

Technical Specifications

• Normal operating voltage: 15 to 32 VDC
• Maximum alarm current: 6.5 mA (LED on)
• Average operating current: 400 µA max
• Maximum NAC line loss: 4 VDC
• External supply voltage (T3/T4): regulated 24 VDC for NAC; up to 70.07 V RMS / 50W for speakers
• Output rating: 3A for Class B wiring, 2A for Class A wiring
• Addressing range: 01-159 (Advanced Protocol mode), 01-99 (CLIP mode)
• Minimum electrical box depth: 2-1/8"
