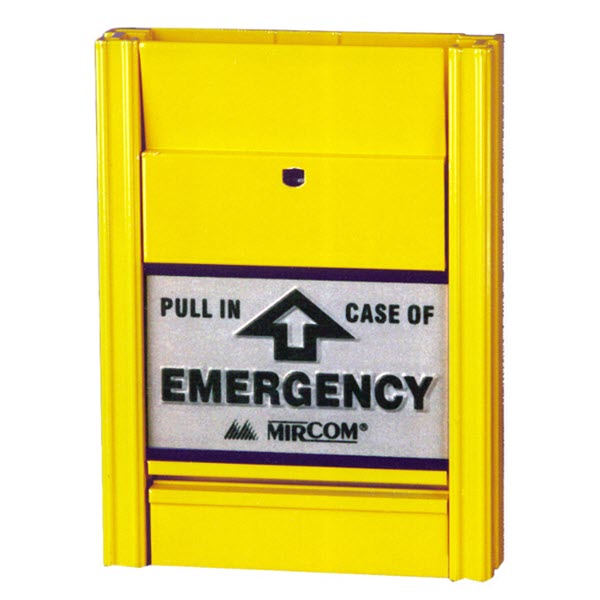

Mircom MS-404U

The Mircom MS-404U is a non-coded, single-action emergency manual station finished in bright yellow enamel for quick visual identification, distinct from standard red fire alarm pull stations. Built from extruded aluminum, pulling the handle releases both a normally open and a normally closed switch, making it suited for emergency door control or similar peripheral device release applications.

Key Features

• Yellow enamel finish for emergency door control applications, distinct from standard fire alarm stations
• Non-coded, single-action operation
• Contains one normally closed and one normally open switch, both actuated when the station is pulled
• Can be converted to double-action operation with the optional MS-DA double action lever kit on custom orders
• Extruded aluminum construction with an abrasion-resistant, raised-letter instruction label

Technical Specifications

• Contact configuration: one N.O. and one N.C. switch (other configurations available)
• Construction: extruded aluminum, enamel finish
