Mircom UDACT-300A

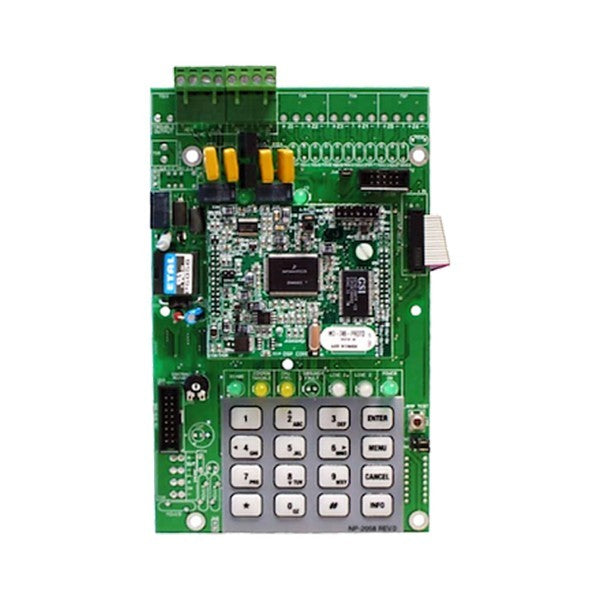

The Mircom UDACT-300A is a digital alarm communicator transmitter and dialer module that sends alarm, supervisory, waterflow, and trouble signals from a compatible fire alarm panel to a central monitoring facility. It works with Mircom's FA-1000, FX-2000, FleX-Net, and SFC-300 panel platforms over dual telephone lines for redundant, reliable reporting.

Key Features

• Transmits alarm, supervisory, waterflow, and trouble signals to a central monitoring station over dual phone lines
• Operates in DACT mode for general alarm/trouble reporting or UDACT mode for detailed point-specific reporting
• Supports ZDACT event grouping, event number offset, and device type override for flexible signal reporting
• Stores up to 500 events from the local dialer and fire alarm panel for local or remote retrieval
• Configurable on-site via built-in keypad, the Mircom CFG-300 tool, or UIMA software, or remotely via modem with passcode protection

Technical Specifications

• Compatible panels: Mircom FA-1000, FX-2000, FleX-Net, SFC-300
• Communicates with the fire alarm control panel via RS-485 data link
• Supports SIA and Ademco Contact ID reporting protocols
• Standby current: 40 mA; Alarm current: 60 mA
